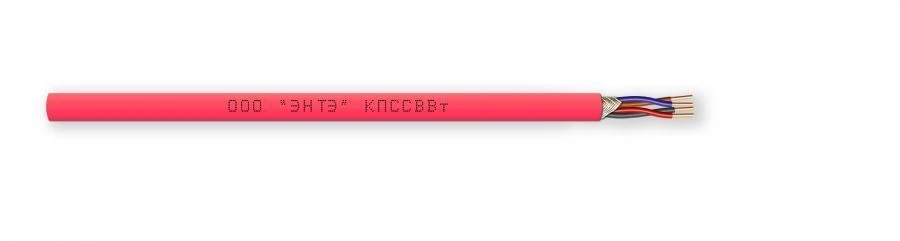

Data Transmission Cable KPSVWT (KMSVWT) with Copper Conductors

Available for Import

KPSVWT Data Transmission Cable for Reliable Data Transfer

Communication Cables & Wires

Manufacturer: ENTE LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Cables symmetrical pair twisting for data transmission, with single-wire copper conductive cores with cross-section from 0,20 to 2,50 mm², number of twisted pairs from 1 to 12 or two parallel-stacked pairs, with insulation and sheathing made of heat-resistant polyvinyl chloride plasticate, with an additional thermal barrier in the form of a winding of mica-containing tape over the core, designed for operation at voltages up to 300 V inclusive alternating current frequency of 50 Hz.

Specifications

Ohmic asymmetry of cores in a pair

2 %

Wave impedance

100 ohm

Working capacity

6100000000

Electrical resistance of the circuit (two conductors of a pair)

192 ohm

Electrical resistance of core insulation

100 ohm

Test voltage between conductors

1 kV

Attenuation factor

2.5
