Available for Import

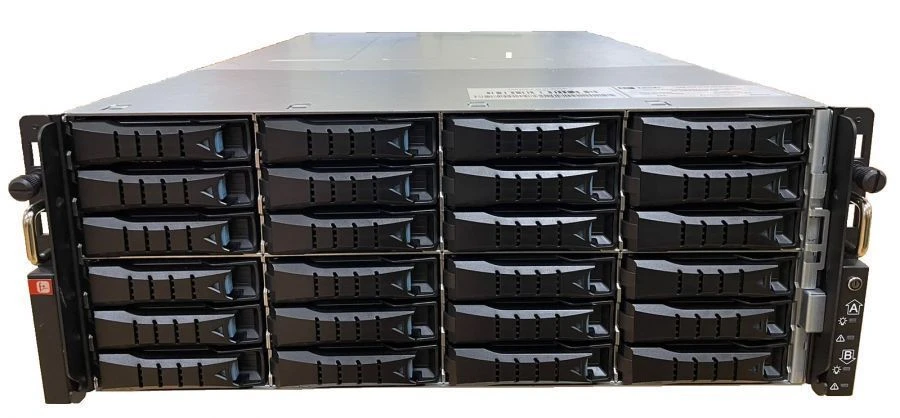

Data Storage System F+ tech FPD-R-13-DS-4212B5 for IT Infrastructure

Storage Devices

Manufacturer:F+ EQUIPMENT AND DEVELOPMENTS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

F+ tech data storage systems are designed to build IT infrastructure of the enterprise. Storage systems are designed for installation in standard 19" cabinets and racks. They have two active controllers and 24 3.5" discs.

Provide high performance and the absence of a single point of failure. Storage systems are suitable for work as centralised storage of databases, virtualisation systems, file storage, storage for video surveillance systems, backup, archiving. It is possible to change the configuration of the storage system according to the customer's requirements.

Specifications

Possibility to equip with InfiniBand ports (64; 100 Gbps)

Optional

Possibility to equip with Ethernet ports (1; 10; 40; 100Gb)

Armoured glass

Data access protocol support (SMB/CIFS; S3; NFS; iSCSI; Fibre Channel)

Armoured glass

Maximum number of installable disk expansion modules

24 pcs

Hot-swappable drives

Available

Availability of functionality for remote management of storage hardware components

Available

Number of storage controllers

2 pcs

Number of cluster nodes

2 pcs

Maximum number of storage controller network interfaces

10 pcs

Maximum total speed of the controller interfaces

120

Maximum number of drives to be installed

24 pcs

Maximum raw data storage capacity

480

Maximum capacity of supported SATA SSDs

240

Power supply capacity of the power supply installed in the controller enclosure

1300 W

Number of power supplies installed in the controller enclosure

2 pcs

Duplication of storage components

Processors, RAM, hard drives, power supplies, fans, I/O controllers

Possibility to equip with SAS ports (6; 12; 24 Gb)

Supported by.

Support for asynchronous replication function

Supported by.

Supports data compression function

Supported by.

Supports cloning function

Supported by.

Support for block access protocols

Supported by.

Maximum number of drives installed in the storage controller enclosure

24 pcs

Maximum capacity of supported HDD hard disks

600

Maximum capacity of supported SSDs with NVMe interface

240

Dedicated port for remote management of storage hardware components

RJ-45 100/1000 Mb/s

Number of RAM slots in the controller

16 pcs

Type of remote monitoring and control controller

ASPEED AST2500

Management platform

Optional

Cooling subsystem

8 cooling fans

Data storage subsystem

24x3.5" HDD, 24x2.5" HDD

Power subsystem

2 800W, 1200W power supplies

Available expansion slots

4x PCIe x8 4.0, 6x PCIe x16 4.0

RAM

32 memory module slots

Processors

Up to 4 Intel Xeon Scalable 3rd Gen

Chipset

Intel C621A

Form factor, unit

Form factor

For 4U rack mounting

RAM

16;32;64;128;256;512;1024;2048;4096

Available expansion slots

SAS 12Gb/s

Power subsystem

2 power supplies 1300W

Data storage subsystem

24x3.5" HDD, 24x2.5" HDD in controller unit

Management platform

ASPEED AST2500

Rear I/O panel

Got it

Power subsystem

2x 1300VT

Equipment

Optional

Form factor

RAM

16;32;64;128;256;512;1024;2048

Power subsystem

2x 800-1200VT

Internal slots and connectors in the controller

2x PCIe x8 4.0, 3x PCIe x16 4.0

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
