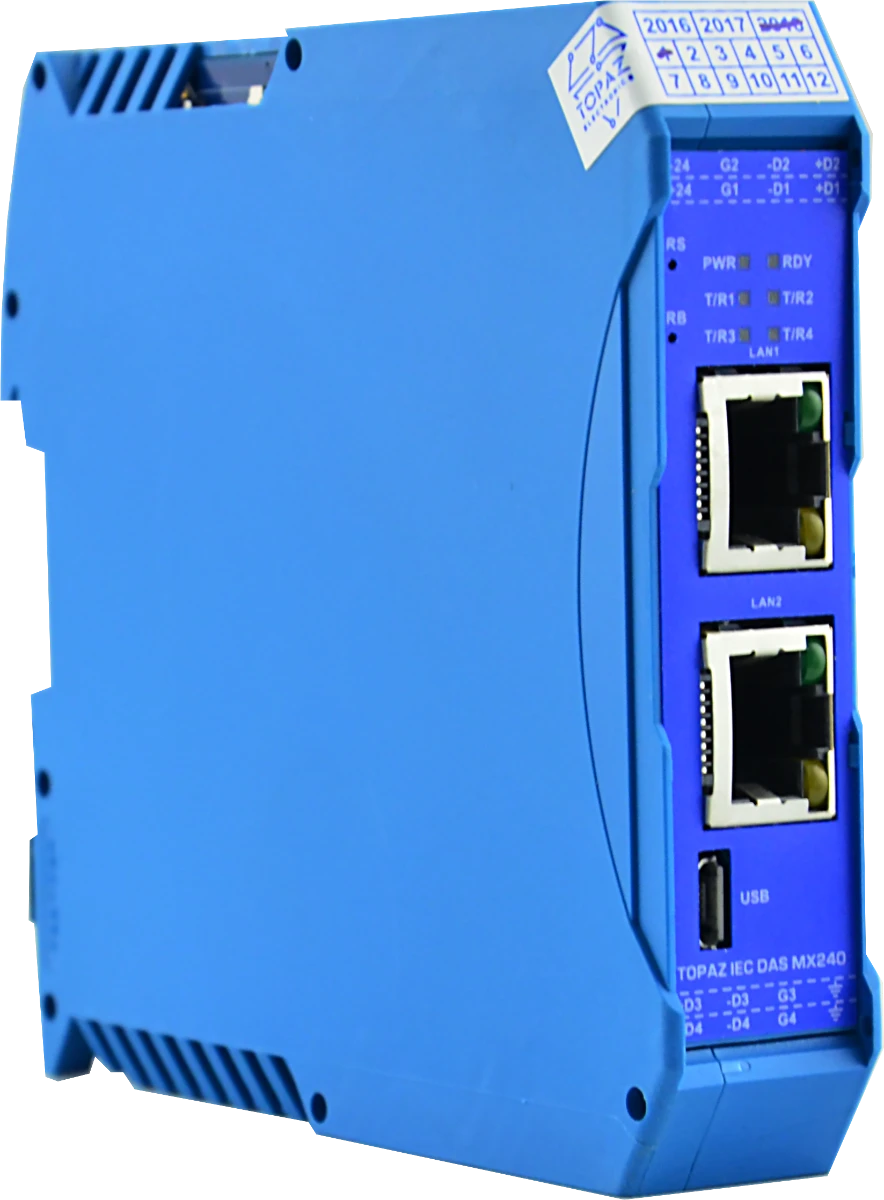

Data acquisition and transmission devices TOPAZ IEC DAS

Telecommunication Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Data acquisition and transmission devices (DAS) TOPAZ IEC DAS are produced according to technical specifications TU 4200-011-89466010-2016 The device is a configurable, project-component, modular controller. The device is designed for use as part of information-computer complexes of electrical installations (ICCE) as a DAS for data collection from electricity meters, energy meters and other digital measuring devices of information-measuring complex (IMC), time synchronisation in them, maintenance of electricity consumption archives, registration of discrete signals about the equipment status, processing of the received information, its storage and transmission to higher levels of information-computer complexes (IC). The field of application of the device is commercial (AIIS KUE, ASKUE) and technical electricity metering systems (ASTUE).

Technical Specifications

Platform	TOPAZ IEC DAS
Rated power	25 W
Rated supply voltage	220 V
Supported standards	IEEE 802.3 10BaseT; IEEE 802.3u 100BASE-TX; IEEE 802.3z 1000BASE-X; IEEE 802.3ab 1000BASE-T
Industrial protocols	Ethernet/IP; GOST R IEC 60870-5-104; Modbus/TCP; IEC 61850-8-1 (GOOSE, MMS)
Time synchronisation protocols	GOST R IEC 60870-5-104 (in accordance with GOST R IEC 870-5-5-5); NTP Server/Client; Modbus RTU; SNTP
Data transfer protocols	GOST R IEC 60870-5-101 (master/slave), GOST R IEC 60870-5-103 (master); Modbus RTU/ASCII (master/slave); SPA-Bus (master)
Supported protocols for communication with field level devices	Modbus-TCP; Modbus-RTU; SPA-Bus; IEC 60870-5-101/103/104; IEC 60870-6 (TASE2/ICCP); IEC 61850-8-1 MMS; IEC 61850-8-1 GOOSE; 61850-9-2; IEC 62056 (DLMS/COSEM) specification of SPODES with PU; START; OPC UA
Supported protocols for communication with upper control level	Modbus-TCP; Modbus-RTU; OPC UA; IEC 60870-5-101/104; IEC 61850-8-1 MMS; IEC 61850-8-1 GOOSE; IEC 60870-6 (TASE2/ICCP); DNP3; FT.3.
Accuracy of time synchronisation	0.001

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
