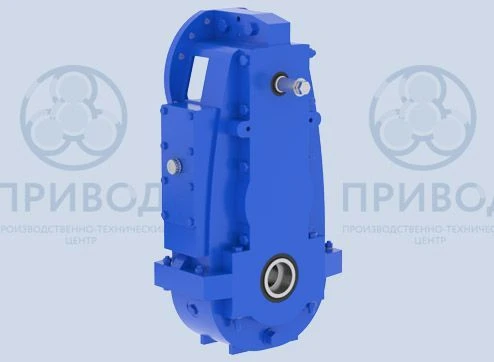

Cylindrical three-stage vertical crane gearbox B(f)(C3VC(f))-100, B(f)(C3VC(f))-125, B(f)(C3VC(f))-160, B(f)(C3VC(f))-160, B(f)(

Special crane helical three-stage gearboxes, type B(f)(Ts3VKf)-100,
??(?3???)-125, ??(?3???)-160, ??(?3???)-200, ??(?3???)-250 are intended for operation
in vertical and inclined position in drives of crane travelling mechanisms and crane trolleys.
trolleys
application conditions
shaft rotation in both directions;
constant and alternating load of one direction and reversible;
operation with periodic stops (repeated short-term operation), duration of non-stop operation not more than 30 minutes.
non-stop operation for a maximum of 30 min;
speed of rotation of high-speed shaft not more than 1800 rpm with limitation of peripheral speed
of gears up to 12m/s;
atmosphere of types I and II according to GOST 15150-69 with air dustiness not more than 10 mg/m3;
operation in macroclimatic regions with moderate (U), dry and humid tropical (T)
climate, placement categories 2,3,4 according to GOST I5150-69.
Unit designation:
B-160F-01-25-26-U2, where.
B - type,
160 - centre-to-centre distance of the slow-speed stage,
F - use...
