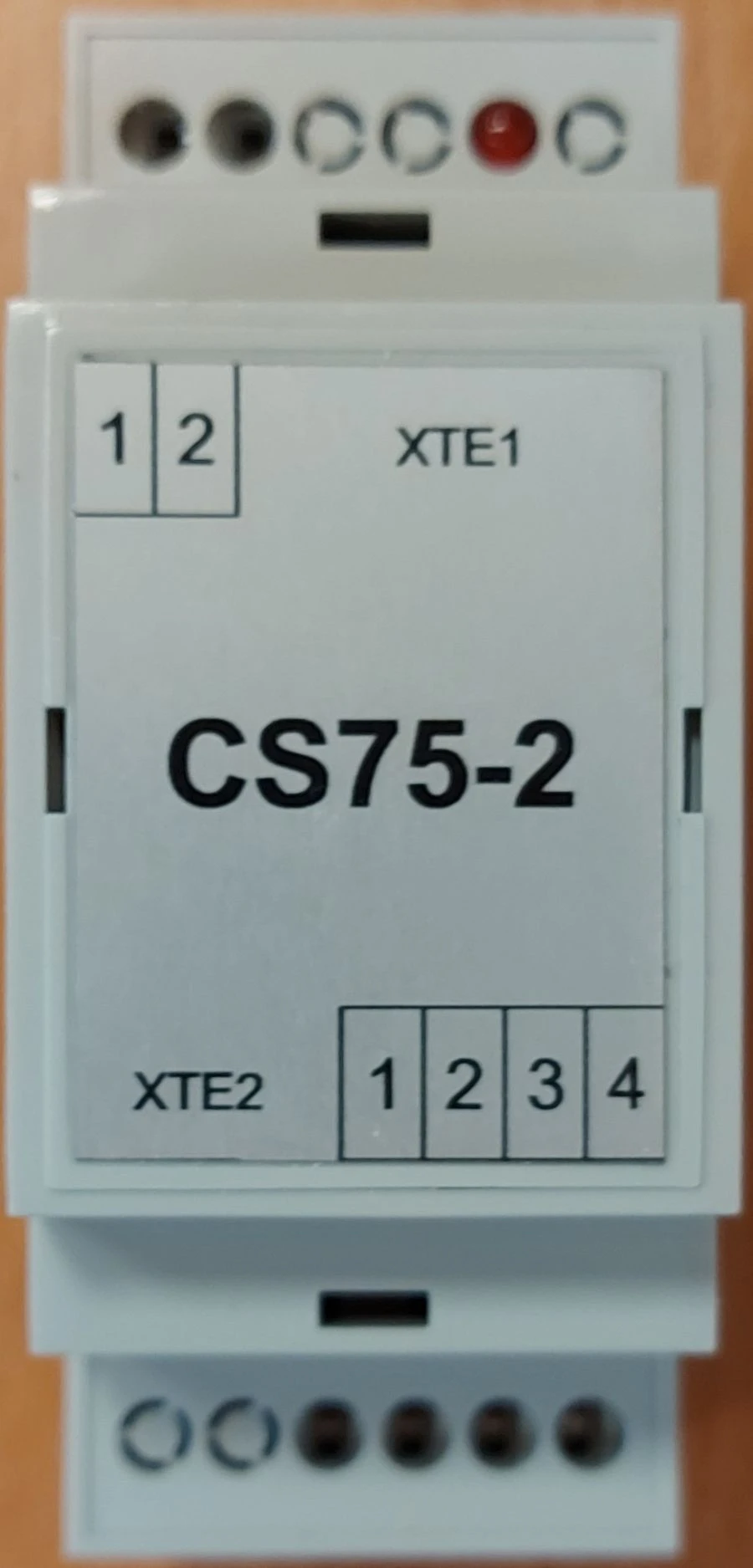

Current Sensor with Shunt Type CS75-2 426431.096 for Accurate Electrical Monitoring

The sensor is manufactured in climatic version O of placement category 4 according to GOST 15150 (ambient air temperature from 1 to 45C; upper limit value of temperature 55C; relative humidity 98 % at temperature 35C). The sensor is designed for operation in the atmosphere corresponding to group P according to GOST 15150. The relay meets the requirements of group M40 according to GOST 17516 with regard to mechanical factors.

Connection of external circuits to the sensor is made with the help of spring terminals of Wago company. Current sensor with shunt type CS75 has a transfer coefficient K= 0,01433 (1+ R1/R2). The CS75 sensor is supplied with K=0.224 mA/mV.

With a maximum output current of 50 mA, the linear range of the sensor is -375 mV to +375 mV. The warranty period is 36 months from the date of shipment to the Electrosila plant.
