Current collector VGT 74.03.00.000SB

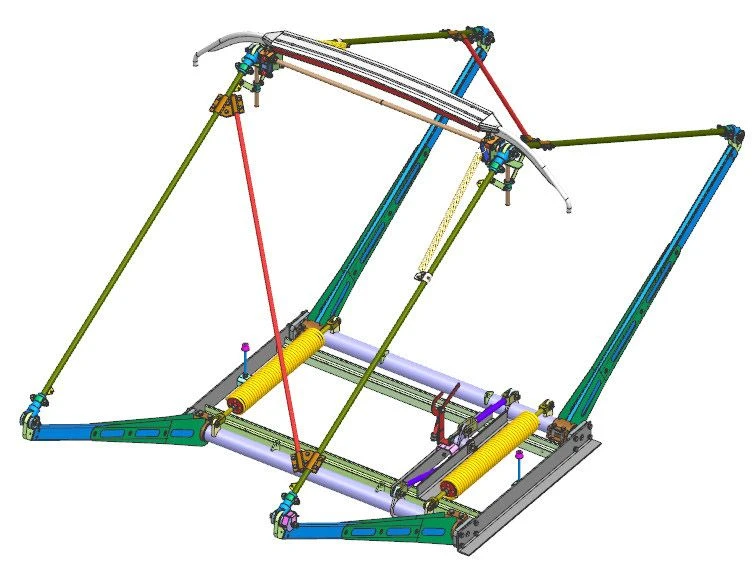

Tokopryemnik VGT 74.03.00.000SB, pantograph type, is designed for permanent electrical connection between the contact wire and tram car, on lines with a contact network, corresponding to SNiP 2.05.09-90, PTE and rated voltage of 550V with a range from 400V to 720V, both in motion and at parking.
Among the features of the design, it is worth noting, uninterrupted operation in the temperature range from -50 to +50C, due to the use of dissimilar materials with different thermal expansion in closed bearing units, a significant increase in the stability of transport at speeds up to 90 km / h and increase the service life of the joints in 2 times, by manufacturing the material part of alloy steel, protected by chemical etching.
A pendulum hook is provided for locking the product at the lower point. The type of the slide, the design of the current collector head and the connecting dimensions are at the customer's choice.
