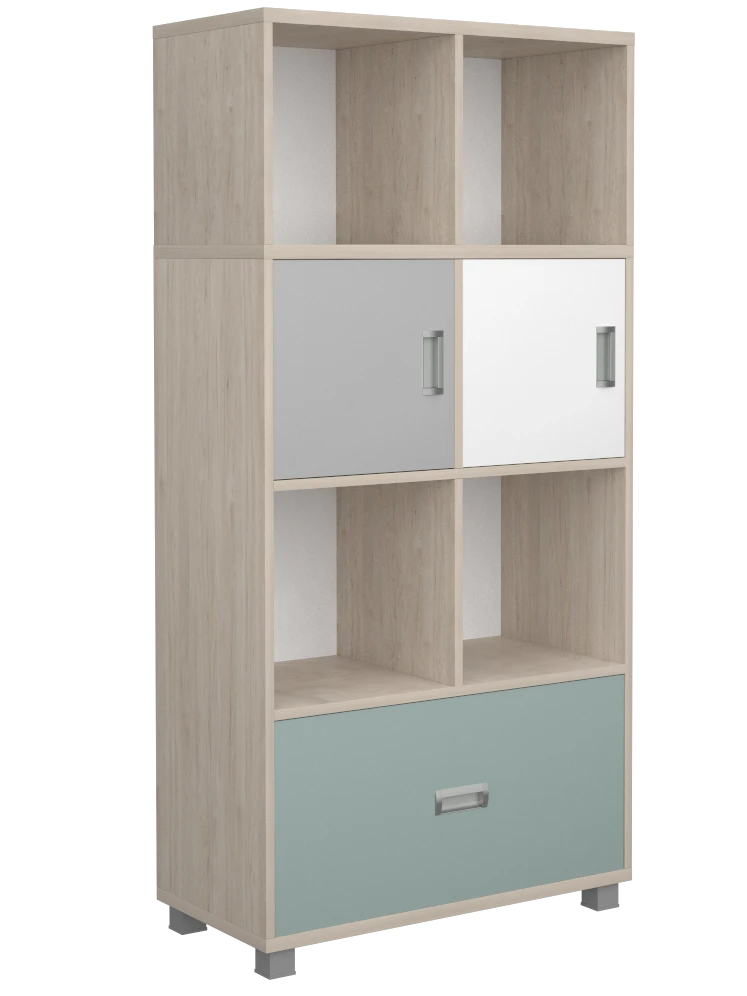

Cupboard for teaching aids (Furniture sections: Fr3.3.1)

Consists of upper and lower modules. Lower 724x362x1140mm. LDFP 22m.The groove for the back wall is located along the back. Attached to the sidewalls using eccentric ties and screws with glue. Base 724x362, LDPE 22m. The base has through holes for height adjustment of supports.Sides 1046x360, 2pcs, LDFP 16mm. There are holes for fixing the door with the help of 6.3x13 Euro screws, holes for mounting shelf holders, as well as marks for fixing the guides. Middle racks 692x360, 1046x360, LDFP 16mm. Ties 692x360, LDFP 16mm .338x348 3pcs, 338x324 1 pc, LDFP 16mm PVC edge 0.4mm in front. Upper module 724x362x350mm. back wall 702x348, lacquered one-sided CDF, thickness 3mm, front side white, front side white, mounting is done in a groove. Plastic supports have height adjustment, rectangular shape. Height 52mm. Complete with drawers and doors: Metal handle of mortise type with plastic plugs
