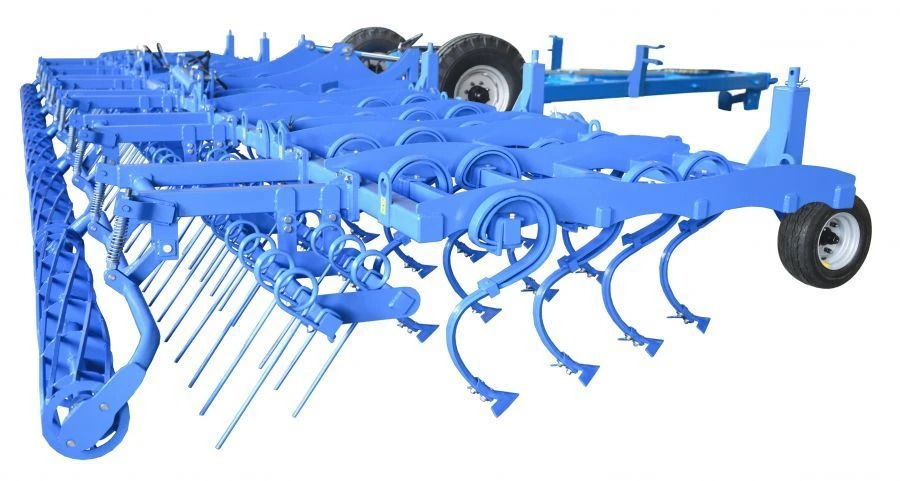

Cultivator series KBM-11

These machines are used for autumn tillage on the grain field, on weedy fields, early spring pre-sowing cultivation, moisture closure. In one pass the following operations are performed: cultivation, loosening, levelling, pre-sowing rolling and creation of a subsurface compacted seedbed.
- direct attachment of the tines to the frame - levelling the field surface
- 4 rows of reinforced spring struts - creates a subsurface packer.
- 520 mm post height, 12x45 mm cross-section - retains moisture
- stand spacing - 680-700 mm - promotes earlier sprouting
- mulches the field surface - working depth from 4 to 12 cm
- lancet tine width - 215 mm
