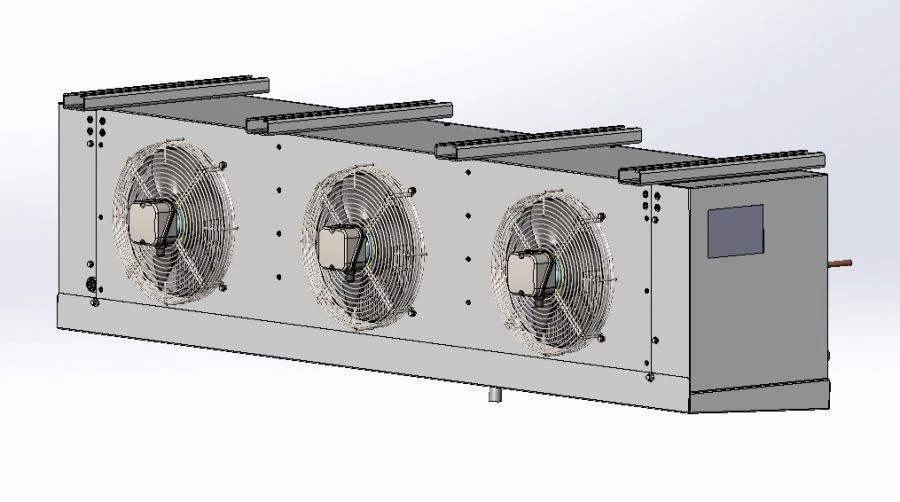

Cubic Air Cooler for Refrigeration Applications - EA30-13C-C70.170.12R

The heat exchange apparatuses (hereinafter referred to as heat exchange apparatuses, apparatus, heat exchanger) are designed to complete compressor-condenser units of refrigeration equipment, commercial equipment, shops, warehouses, vehicles, as well as for ventilation and air conditioning systems. With regard to the impact of climatic factors of external environment the devices are manufactured in UHL version for placement categories 2 and 4 according to GOST 15150, for operation at ambient temperature from minus 40 to plus 40 °?. Operation of the heat exchanger according to GOST 15150.

Structurally the device consists of copper tubes with corrugated aluminium foil plates (lamellae) put on them. The ends of the tubes are soldered into collectors made of copper pipes, through which the energy carrier is supplied and discharged. The collectors have special sockets for connection to the external system.

Additionally, the heat exchanger is equipped with brackets at the customer's request.
