Cryogenic vacuum cryogenic pump NVK250-2,6 KVO.2440.00.000-02

Specialised Vacuum Pumps

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

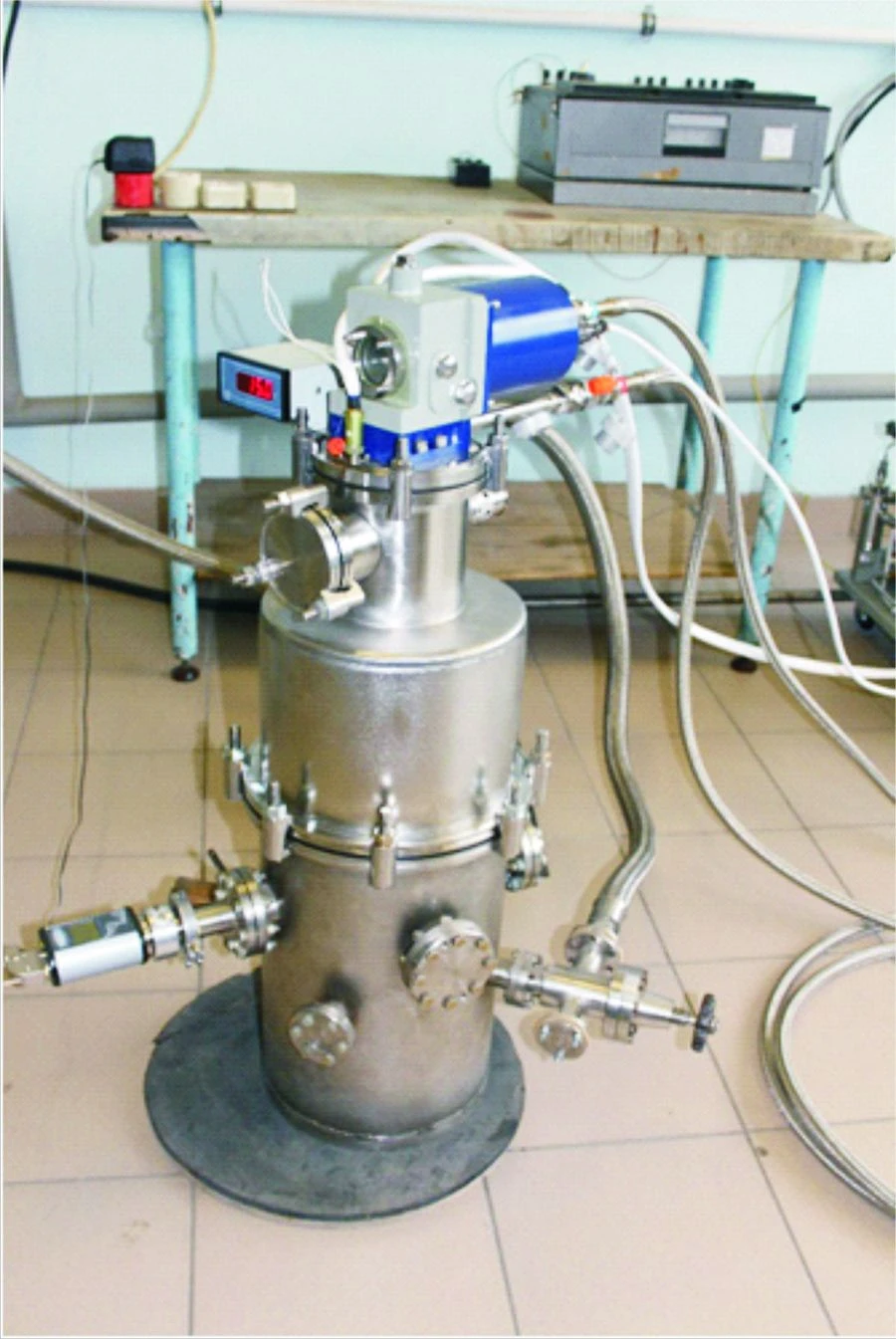

Vacuum cryogenic pump - one of the types of modern high-vacuum pumps designed to obtain ultra-high vacuum (up to 10^-8 Pa) free from organic contaminants. The pumps pump out all air components, including helium and hydrogen, without introducing their own organic contaminants into pumped volumes. The company produces a parametric range of vacuum cryogenic pumps with diameters of nominal bore (DM) from 160 to 900 mm. Vacuum cryogenic pumps consist of two main units: cryo-pumping unit and compressor unit connected by flexible pipelines. Depending on the nominal bore diameter and operating conditions, the pumps are equipped with one or several cryogenic refrigerators operating according to the Gifford-McMahon cycle. The main elements of the compressor unit are: compressor (rotary or scroll type) for compression of the working gas, oil separator and adsorber for removal of oil and mechanical impurities from the compressed gas

Technical Specifications

Type of product according to PP RF 616	Air or vacuum pumps; air or other gas compressors
Fast action in air in the pressure range from 5x10^-4 to 1x10^-1 Pa	2.6
Warranty period of operation	18 months from the date of commissioning with warranty operation not exceeding 5000 hours
Frequency of maintenance	Not more than once every 5000 operating hours
Minimum service life	6 years (10000 operating hours)
Weight of compressor unit	100 kg
Width	496 mm
Length	674 mm
Height	524 mm
Weight of cryopump unit	Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording kg
Width	352 mm
Length	421 mm
Height	518 mm
Power consumption 3f/380V/50Hz	4.2 kW
Highest starting pressure	5
Time to reach operating mode	60
Ultimate residual pressure, Pa	1?10^-8
Nominal bore diameter	250 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
