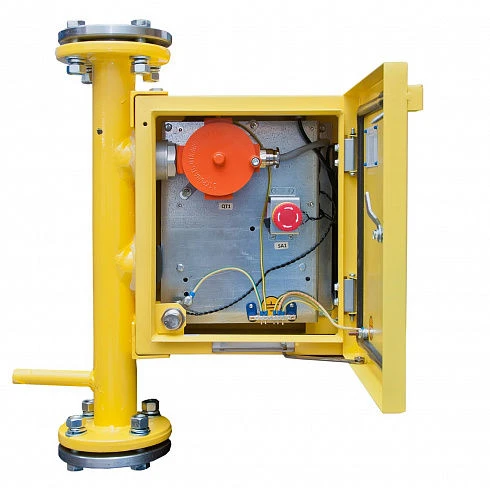

Crossings gassing control system SKZP-S-VS DN50-Du200 (220V)
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
SKZP is designed for autonomous issuance of emergency warning signalling about gas pipeline condition (possible gas leaks into gas pipeline protective cases) in places where the gas pipeline approaches or crosses a railway or motorway. Data transmission is carried out via wireless cellular communication channels of GSM 900/1800 standard. Functional capabilities: automatic control of gassiness in the places of convergence (crossing) of the gas pipeline with the railway; signalling of the system cabinet door position; automatic issuing of emergency warning alarms about the gas pipeline condition and possible gas leaks to the operating organisation and railway station duty officers; access control to the equipment; autonomous operation mode. The system, depending on the modification, is designed for installation on the exhaust candle with a nominal passage from Du50 to Du200.
Specifications
Availability of gas analyzer sensor
Built-in
Type of gas analyzer
Stationary
Degree of dust and moisture protection
IP54
Explosion protection marking
2 Ex ic IIB T5 Gc
Type of explosion protection
Intrinsically safe electrical circuit
Modification Du200
53, kg.
Modification Du150
43, kg.
Modification Du125
38, kg.
Modification Du100
34, kg.
Modification Du80
31, kg.
Modification Du50
27, kg.
Modification Du125
600 x 555 x 310, mm.
Modification Du200
688 x 555 x 355, mm.
Modification Du150
628 x 555 x 330, mm.
Modification Du100
550 x 555 x 296, mm.
Modification Du80
533x555x290, mm
Modification Du50
520 x 555 x 290, mm.
Diameter of the nominal bore of the exhaust candle
50 to 200, mm.
Operating temperature range
From -40 to +60, ?
Wireless communication standard
GSM 900/1800
Power consumption, max.
40, W
Average maximum current consumption in data transfer mode
370, mA
Current consumption in power saving mode
12, mA
AC mains power supply
220 V, 50 Hz
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
