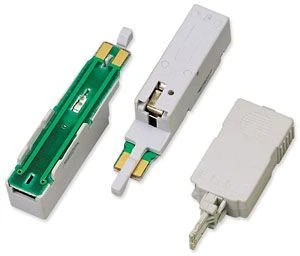

Cross-protection module for plinths LSA-Profil "Krone"

Designed for electrical protection of switching and peripheral equipment equipped with secondary overvoltage protection.Max. operating voltage, VDC180Max. operating voltage, VDC180Nominal voltage of arrester operation, V230Max. nominal voltage of arrester operation, %Max. nominal current at 20120Max. output voltage at 1 kW, V<700Nominal discharge surge current, kA3Nominal discharge alternating current, Arms3Nominal isolation resistance at 20 C, Shch8Typical value of current protection switching on (500 mA/ 250 C), S6Trigger time of Fail-safe element 1A, S<25Time of operation of the element Fail-safe 5A, S<10Insulation resistance (without secondary protection) at 100 V, MSh>1000Nominal capacitance at 1 MHz/1 V, pF<5Typical boundary frequency (-3 dB Zw=600 Ohm), MHz<65Typical boundary frequency (-3 dB Zw=150 Ohm), MHz<100Temperature of operation, C-20?+60Storage temperature, C-40+80Weight, g50
