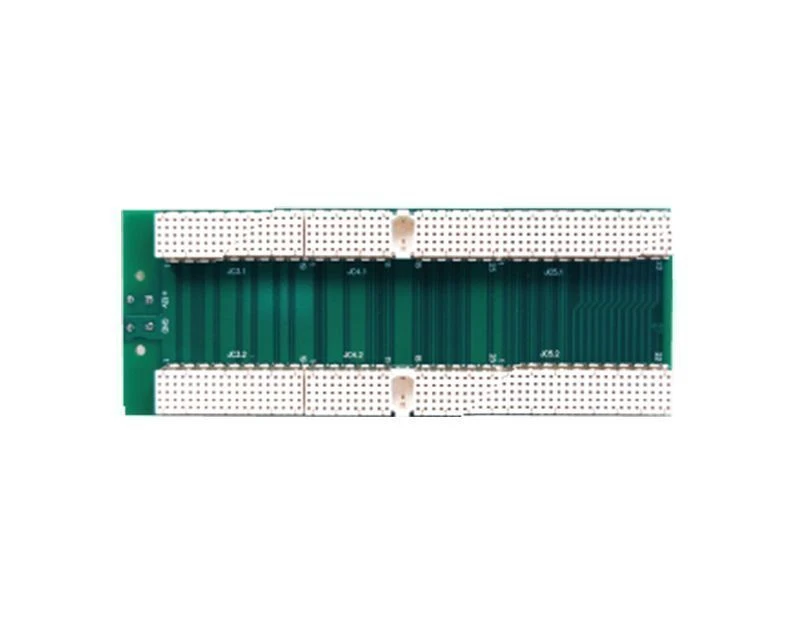

Cross-module KM42C

The KM42C module is designed to transmit user-defined signals (abbreviation - u.d.) on the CompactPCI bus from the slot where the K42C processor module is installed to the neighbouring cross-board slots where the KTM42C interface adapter module is installed.
The KM42C module is installed on the back side of the CompactPCI cross-board in connectors J3 - J5. The module is used in devices together with K42C and KTM42C modules. The module is intended for use as part of on-board equipment of automatic and automated control systems operating in difficult operating conditions. The module is intended to be used as a part of the CompactPCI system bus crate together with the K42C processor module and the KTM42C interface module.
The module provides the following basic technical characteristics:
- Number of backplane slots: 2 or 3;
- Switching of high-speed serial signals
for interfaces: PCIE, SATA, 1Gb Ethernet, USB2.0;
- Switching of signals of graphic interfaces: DVI, VGA.
