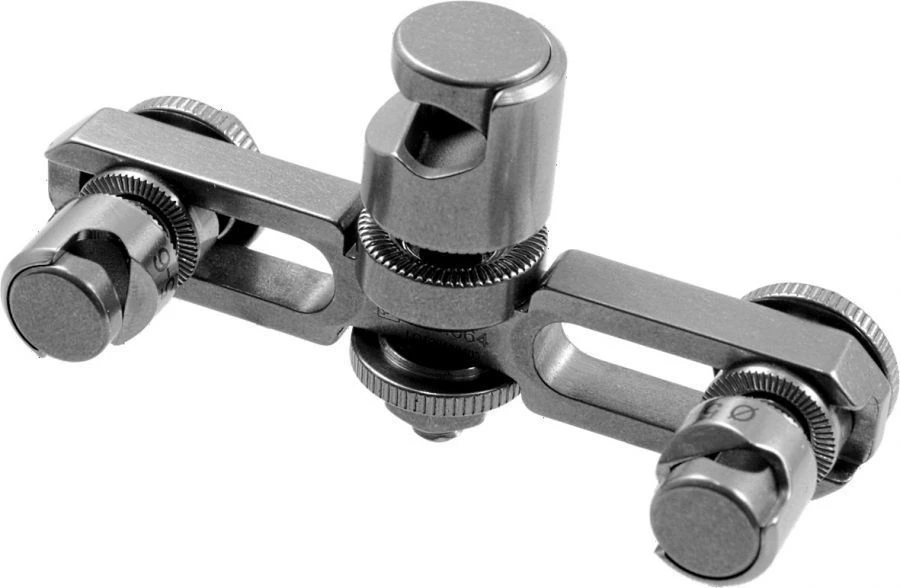

Cross clamp "11/8", article no. 390.064

The transverse rod holder provides clamping of Schanz rods and adjustment of their location along the circumference in the range of 360? with any discreteness. The fixation of the carrier tube to the rod holder is 3-pointed. The total adjustment of the mutual location of the system "support tube - transverse rod holder - Schanz rod" can be performed in 3 planes. All clamping and locking units are spring-loaded, the hexagonal locking nut has a travel stop and will not fall out. The inner spoons have an anti-slip coating. The rod holder is marked with the diameter of the rods to be clamped, individually labelled and packaged.
For Ø8mm and Ø11mm tubes.
For Ø5mm or Ø6mm rods.
Spring-loaded, self-retaining.
