Available for Import

CPUS processor module

Versatile Computing Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

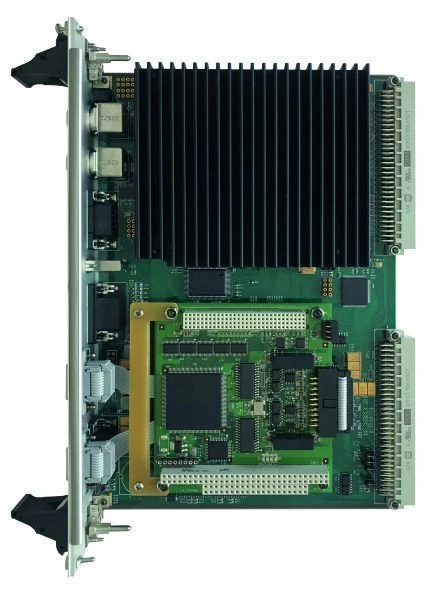

The CPUS module is a PC/AT-compatible processor module with an ETX/XTX mezzanine format as the central processing unit (hereinafter referred to as CPUS), and is intended for use as the main central processing and computing device in automated control systems.
The CPUS module is a recoverable multi-channel, multifunctional product, complies with the State System of Industrial Instruments and Means of Automation (SSIA) and can be used in telemechanics, process control systems and in measuring and computing complexes.
The CPUS module has a modular design complying with the requirements of GOST 28601.3-90 and requires placement inside other products during operation.

Technical Specifications

Impact 1000 g	0.5...2 ms
Vibrations 2 g	1…200
Power supply voltage	+4,75 to +5,25V
Temperature range	(-25...+80) ?
Ethernet	Fast Ethernet channel with 10/100 Base-TX interface, IEEE802.3 standard.
GPIO	Input port (8 bits), available for hardware code setting. The lines of the port are brought out to the P2 interface connector.
USB	3 channels of USB2.0 serial interface with output to the rear interface connector P1 and 1 channel output to the front panel of the module.
Relative humidity	"100% non-condensing at +50C and below".
Cache RAM	128 Kbytes to 512 Kbytes - second level memory cache
DRAM	SODIMM DDR 333 MHz, 128 to 1Gb

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
