COUNTERS-COUNTING-FLOWMETERS MASS FLOWMETERS FINE-MASS

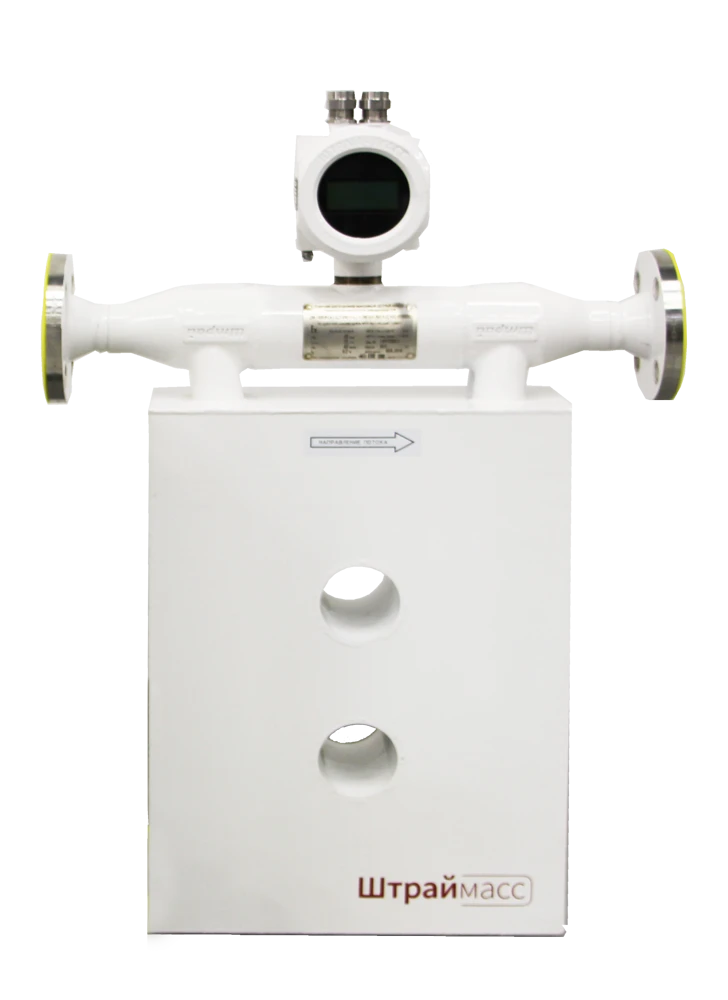

Stray Mass Flow Meters (hereinafter referred to as flow meters) are designed to measure the following parameters of the medium flowing through the pipeline: - mass and volume flow rates, mass and volume, density, temperature of liquid; - mass flow rate, mass and temperature of gas. Flow meters can be used to measure the above parameters of liquid or gas transported through the pipeline, with viscosity from 0.6 to 4600 mm2/s, density from 0.5 to 1.9 g/cm3, temperature from minus 60 to plus 180 ° C, at pressure from 0.1 to 32.0 MPa, at flow rates from 0.94 to 740 tonnes per hour. The specified range of measurements is provided by a number of standard sizes of flow meters with diameters of nominal passage: 6, 8, 10, 20, 40, 50, 80, 100, 150, 200 mm. Flow meters are designed for application in metering units of petrol, liquefied gas, paraffin, diesel fuel, oil, oil with water, fuel oil, other liquids and aggressive media at permissible working pressure and working temperature.....
