Available for Import

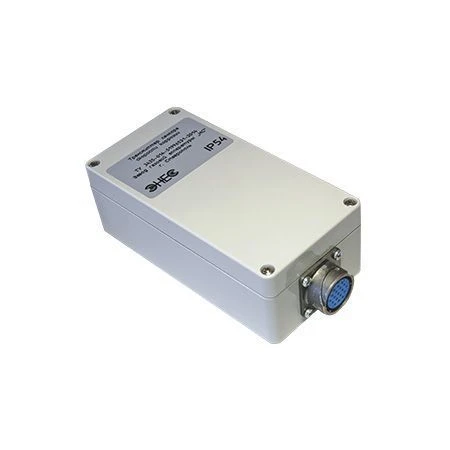

Corrosion Rate Sensor Transmitter
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
1. The corrosion rate sensor transmitter is a part of the means for controlling the efficiency of electrochemical protection of underground metal structures against corrosion and is used for operational monitoring of corrosion processes.
2. The device is designed for maintenance of SSC corrosion rate sensors (hereinafter referred to as SSC) manufactured according to TU 3435-012-51996521-2014. The device allows to realise remote control of corrosion rate and depth of corrosion of protected underground metal structures.
3. The device performs:
- scanning of the state of the SSC indication element;
- fixation of information in the internal non-volatile memory of the SSC about the current state of the indication element;
- calculation of the total depth and corrosion rate;
- information exchange with telemetry system via RS-485 interface specification in accordance with ModBus ASCII or RTU protocol.
2. The device is designed for maintenance of SSC corrosion rate sensors (hereinafter referred to as SSC) manufactured according to TU 3435-012-51996521-2014. The device allows to realise remote control of corrosion rate and depth of corrosion of protected underground metal structures.
3. The device performs:
- scanning of the state of the SSC indication element;
- fixation of information in the internal non-volatile memory of the SSC about the current state of the indication element;
- calculation of the total depth and corrosion rate;
- information exchange with telemetry system via RS-485 interface specification in accordance with ModBus ASCII or RTU protocol.
Specifications
Type of product according to PP RF 616
Other tools and instruments for measurement, inspection and testing
Power consumption max.
1 W
Time of establishing the operating mode from the moment of power on no more than
1
Communication port
RS-485
Exchange protocol
ModBus ASCII, ModBus RTU
Service life at least
15 a
Weight not more than
500 g
Overall dimensions max.
81x56x208 mm
