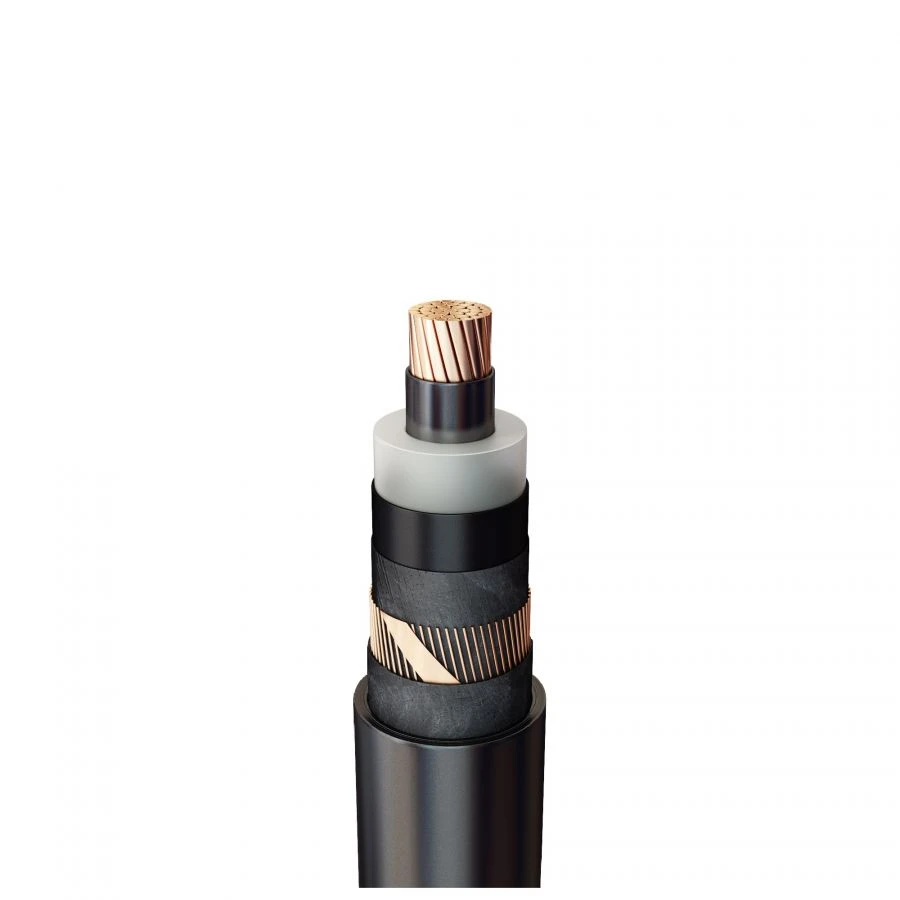

Available for ImportCopper Power Cable K9SPv with Cross-Linked Polyethylene Insulation for Reliable Energy Distribution
Manufacturer:UGLICHKABEL LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Power cable Pv... copper with LDPE insulation in PVC ng(A)-LS jacketPower cable Pv... copper with SPE insulation in PVC sheath, PvVVPower cable Pv... copper with LDPE insulation in PVC sheathingPower cable 2X... copper with SPE insulation, single-core, in tape armour, PE sheathing. ... copper with LDPE insulation, singlePower cable 2X... copper with SPE insulation, single-core, in wire armour, PE sheathing. . copper with LDPE insulation, single-c
Description
Power cables with cross-linked polyethylene insulation of the trade mark "Uglichkabel K9SPv", "KAMAKS", designed for transmission and distribution of electrical energy in stationary installations for rated alternating voltage of 6, 10, 15, 20 and 35 kV nominal frequency of 50 Hz for networks with earthed or insulated neutral. Type of climatic execution of cables - ???, ? and ??
Specifications
Number of cores
3 pcs
Mark
K9SPvAPMng(A)-HF; K9SPvAPng(A)-HF; K9SPvMGPMng(A)-HF; K9SPvMGPMng(A)-HF; K9SPvMPMng(A)-HF; K9SPvMPng(A)-HF; K9SPvPMng(A)-HF; K9SPvPMng(A)-HF; K9SPvPng(A)-HF
Material of conductive cores
Copper
Insulation material of conductive cores
Cross-linked polyethylene (LDPE / XLPE)
Availability of reservations
no
Outer sheath material (if no armor)
Halogen-free composition (HG / HF)
Material of protective hose (if armor is available)
Halogen-free composition (HG / HF)
Availability of metal screen
Armoured glass
Fire hazard class
P1b.8.1.2.1.
Cable cross-sectional shape
Round
Design of conductor core(s)
Multi-wire round (mc)
Nominal cross-section of conductive cores
630 mm²
Rated AC voltage
6; 10; 15; 20; 35 kV
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
