Coordinating device SURA-500-50-13 (0,5 kW)

Electrical Interface Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Coordinating device SURA-3000-50-13 (3 kW)

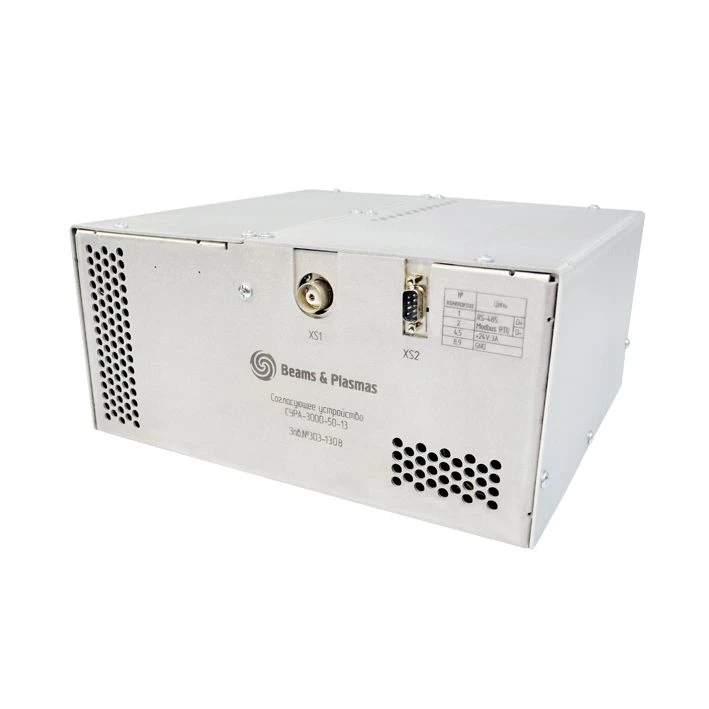

The automatic radio-frequency coordinating device SURA is designed to ensure coordination of the load with variable impedance, with coaxial cable and high-frequency generator output in manual and automatic modes.

The SURA matching device is equipped with:
- emergency interlocking system
- Modbus RTU protocol control
- RS-485 interface

*The device can be supplied in two versions: for inductive and capacitive loads.

Inductive loads - induction gas discharge systems, including radio frequency plasma generators.
Capacitive loads - high frequency magnetron sputtering systems, high frequency bias fed tables, high frequency glow discharge cleaning systems.

Operation manual is available on request: LCMK.303.00.00.00.00.000 RE SOURA-3000-50-13 ADJUSTING DEVICE

Technical Specifications

Assignment	Provision of harmonisation of load having variable impedance with coaxial cable and output of high-frequency generator in manual and automatic modes.
Dustproof	Yes - The unit housing is made of metal and has no exposed live parts.
Type of construction	Stationary
Warranty period	1 a
Climatic designs	GOST 15150-69; GOST 15543-70 at normal values of climatic factors of the environment - UHL for product placement category 4.2
Power supply voltage	230 ±10% V
Maximum power	0,5 kW
Minimum RF power	100 W
Operating frequency	13,56
Input impedance	SBVVBG ohm
Maximum output current amplitude	75 A
Maximum voltage amplitude	5 kV
Maximum load reactance	150
Interface	RS-485
Data transfer protocol	ModBus RTU
Overall dimensions, (length x width x height)	313x277x172 mm
Weight, not more	7 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
