Conveyors: TOC (chip conveyor) of belt - scraper type

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided

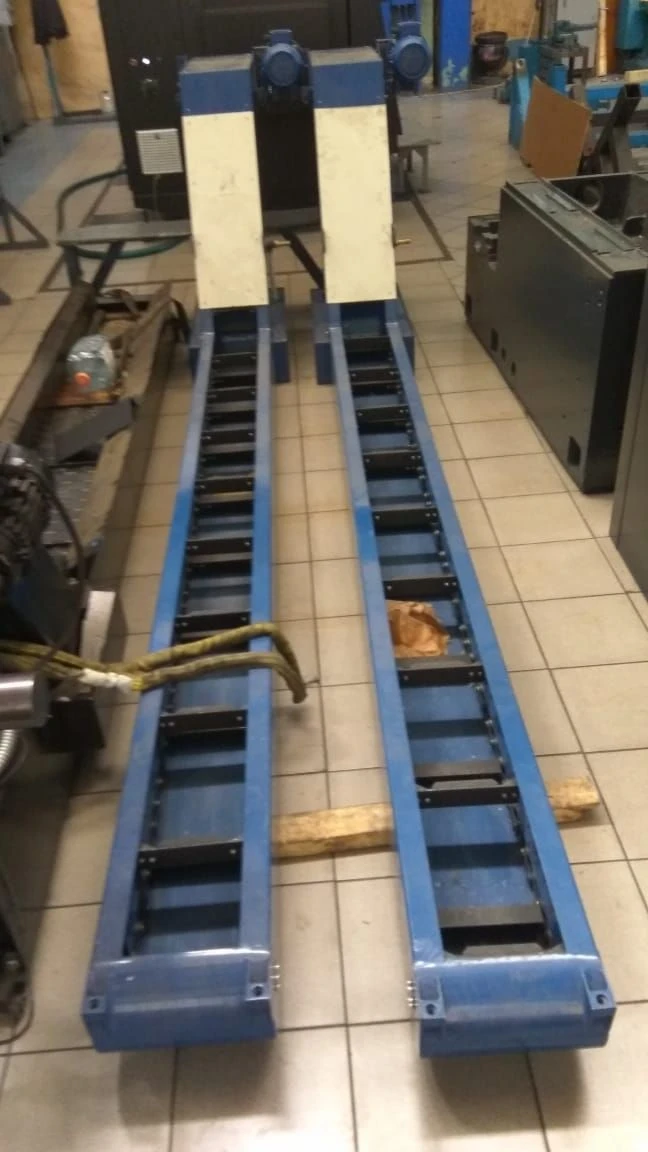

TOCs have the same design, differ in dimensions (length, height, width), differences in the type of belt (track, scraper, auger), in the length of the receiving branch and discharge height. TOCs are designed to move waste material from the working area of machines to an area where it can be processed, disposed of or recycled. TOC includes a receiving section, a diverting section, hermetically connected to each other, forming a single container, into which the chain mechanism with tracks, conveyor belt and drive mechanism are driven. The receiving part has an aperture into which the chips are dumped on the conveyor belt, this part of the TOC is a tank for coolant and is separated from the tank, located in the withdrawal section, by a partition with a mesh, which is a coarse filter. The coolant bath has a sump with a lid. On the side wall of the bath there are two coolant level indicators and a plug for draining the liquid. The chain movement is carried out from a gearmotor, the output shaft of which is the driving shaft of the conveyor.

Technical Specifications

Type of product according to PP RF 616 Parts and accessories for metal working machines
Pitch of traction plate chains of the conveyor according to GOST 588-81 63 mm
Highest pulling force on the belt, N 3500
Belt speed 3,8
Angle of inclination of branch branch 60

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
