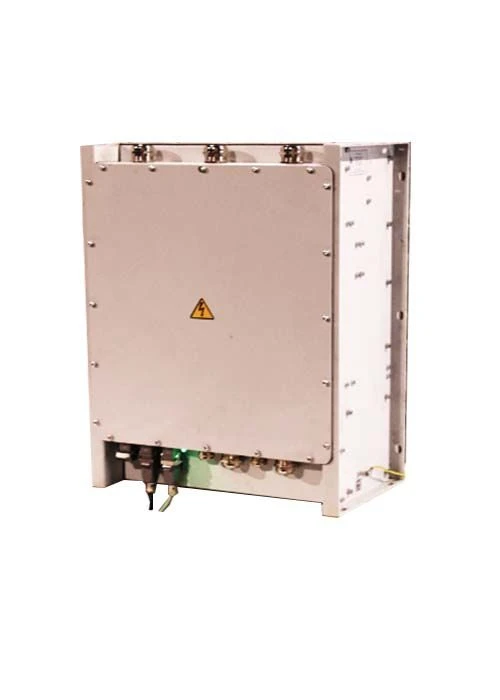

Converter of starting diesel generator PPDG-1200-200-U2

Static Power Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed to regulate the field winding current and supply the phase windings of the traction synchronous generator of diesel locomotives with alternating three-phase voltage of variable frequency and amplitude in order to unwind the engine shaft to the level of speed, providing its start.

Specifications

Traction generator excitation current control range 0...180 A

Consumption current, max. 1700 A

Maximum inrush current of traction generator stator (effective value of the first harmonic), not more than 1200 A

Maximum output voltage (first harmonic effective value) 200 V

Number of start attempts per series 3 pc

Duration of launch attempt, max. 8

Pause between start attempts, max. 60

Pause between series, max. 10

Degree of protection of the shell IP44

Weight 100 kg

Width 480 mm

Depth 282 mm

Height 700 mm

Operating conditions with regard to external mechanical influences Must correspond to group M25 according to GOST 30631

Operating conditions with regard to exposure to climatic factors of the environment Must correspond to climatic execution U of placement category 2 according to GOST 15150.

Relative humidity 100 % at temperature 25 C

Altitude above sea level, max. 200 m

When transducers are operated at an altitude of not more than 1000 metres above sea level, the operating and limiting ambient te -50...60 °C

When transducers are operated at an altitude of 1000 to 2000 metres above sea level, the operating and limiting ambient temperat -50...54 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
