Controller of radio-channel devices ??-?-??? / WIRELESS TRANSLATOR MODULE ARG-WL8-TRH

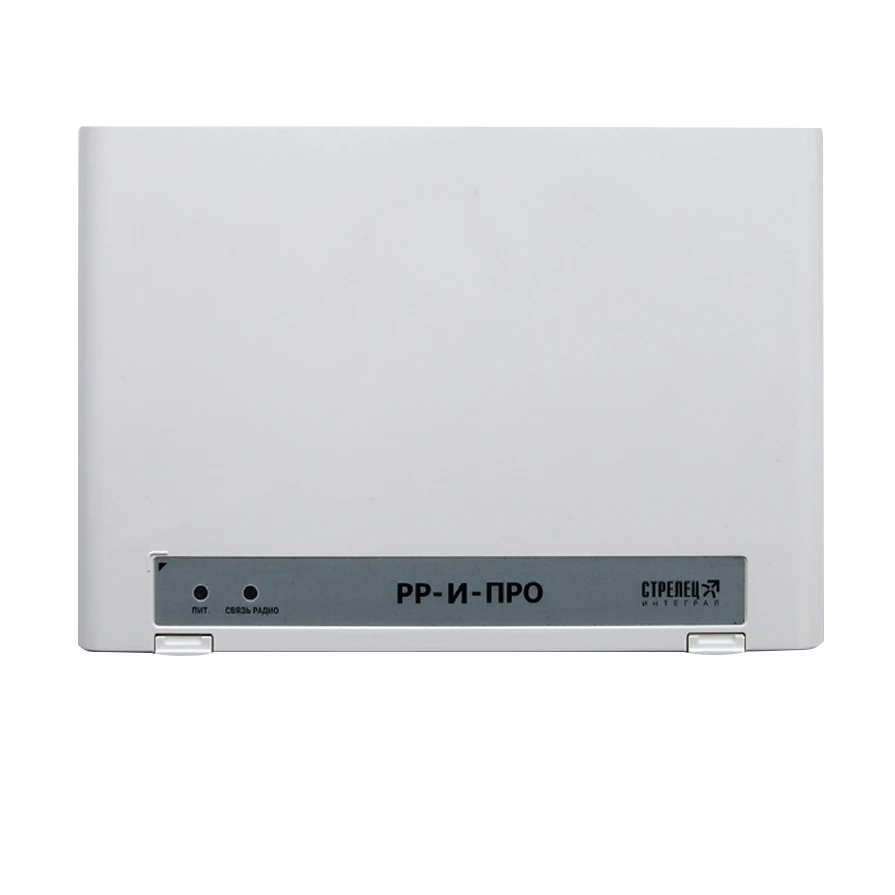

The RR-I-PRO radio channel device controller is a part of the integrated security system "Strelets-Integral" (hereinafter - ISB). RR-I-PRO controllers have a network interface through which they are connected to the ISB segment. RR-I-PRO control the radio network with dynamic routing formed by the RR-PRO controllers, which relay signals from the Sagittarius-PRO devices. The type of communication line with the daughter devices is wireless. Operating frequency range MHz 868. Maximum radiated power mW 25. Interfaces: Network S2 pcs. 1, two S2 modules can be installed. USB (MicroUSB connector) pcs. 1. External power supply voltage V 7.5-28. Consumption current at 12 V power supply mA 40. Main and backup power supply control inputs. Availability of programmable analogue inputs/outputs of OK type pcs. 3. Signal relay outputs pcs. 2. Overall dimensions mm 210x143x38. Weight kg 0,4.
