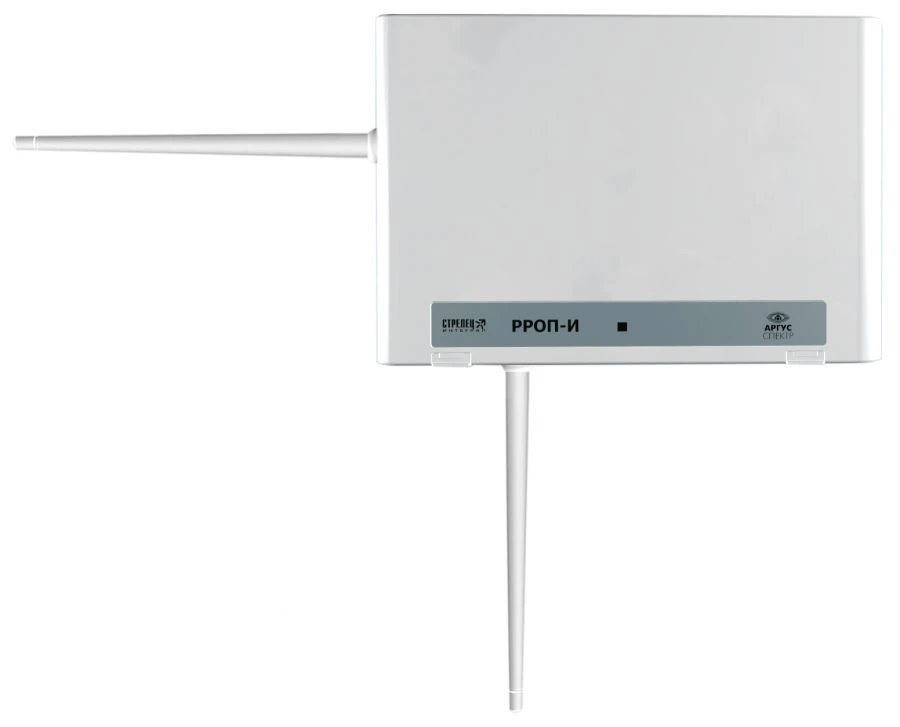

Controller of radio-channel devices RROP-I

The controller of radio channel devices RROP-I is designed to monitor and control radio channel devices of the radio system of indoor security and fire alarm system "Strelets" as part of the integrated security system "Strelets-Integral". RROP-I can fulfil the functions of the ISB segment controller. S2 ISB network interfaces (basic and optional) are used for data exchange between the ESC-II and ISB devices. The radio channel is used for information exchange between the ECCU-I and the radio channel devices of the VDS. The operating frequency of the radio receiving and transmitting path of the EROP-I is in the range of 433.05-434.79 MHz. The radiated power of the radio transmitting path is not more than 10 mW. The sensitivity of the radio receiving path of EROP-I is not worse than 1.5 µV. EROP-I is powered from an external DC source with voltage from 9 to 28 V. The consumption current of ECD-I at 12 V voltage - no more than 120 mA, at 24 V voltage - no more than 65 mA.
