Control valve T-137bm

Regulating Valves

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Control valve T-135bm Control valve T-141bm Control valve T-136bm

Description

Regulating valves are designed to regulate the flow and maintain the level of condensate in LDPE and HDPE.

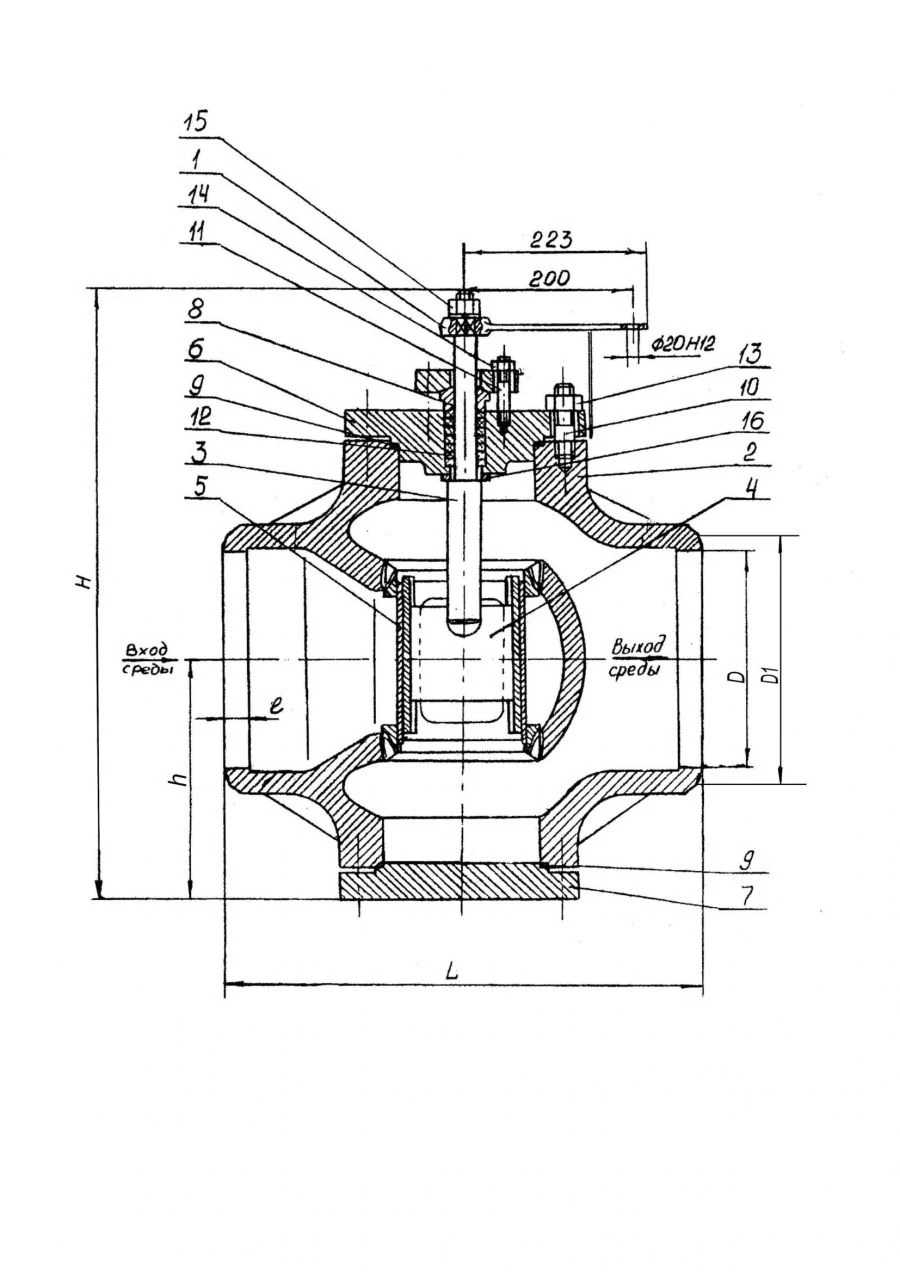

The operating principle of the regulating valve is based on the change of the regulated flow of the working medium by rotation of the spool around its own axis. The maximum angle of rotation of the spool is 90 degrees. Control of regulating valves is carried out by means of electric actuators ???.

Specifications

Weight

283 kg

Material

25L steel

Climatic version

U3, T3

Nominal diameter

250 mm

Throughput

424

Pressure rating

10 MPa
