Control valve ATEK.493924.021

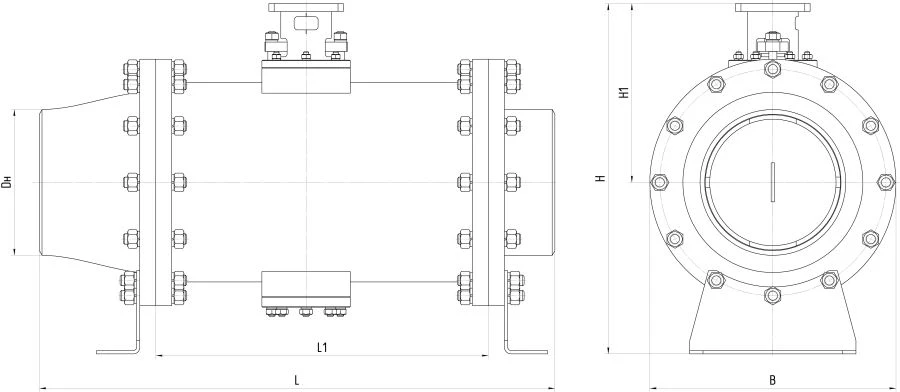

Regulating valve is designed to regulate the flow rate of the working medium by commands of the control system. The valve is steel straight flow unloaded, plunger type. The valve is controlled by electric actuator or manual actuator installed on the valve. The tightness of the valve is class II according to GOST 9544. The valve is hermetically sealed in relation to the external environment. Connection to pipelines is welded. Welding is carried out by means of adapters on mating flanges. The presence of mating flanges with adapters, which are elements of the design, provides quick removal of the valve without cutting out of pipelines.
