Control panel of meteo TDC-17-M

Aircraft Spare Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

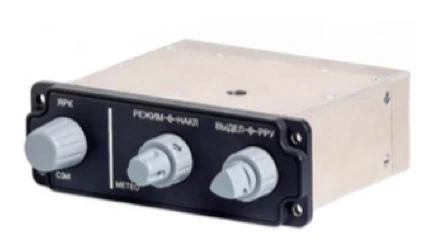

The TDC-17M control panel as part of the helicopter flight equipment complex controls the brightness of interfacing equipment and onboard meteonavigational radar station.
Functions of the control panel when working with meteonavigational radar station:
- control of station gain and separation factor;
control of the antenna tilt angle;
- switching of the station operation modes.

Technical Specifications

Electricity supply	18.0 to 31.5 B
Continuous operation time	at least 15 h
Standby time after power on or power failure	no more than 2 seconds
Equipment	The TDS-17M remote control can be equipped with white or green illumination (adaptable for night vision goggles) and engraving in English or Russian.Taking into account the horizontal or vertical positioning of the remote control, the engraving on the fron
Failure rates	- Average MTBF in flight: at least 10,000 hrs - Average MTBF and damage: at least 5,000 hrs
Dimensions	146×48×154,3 mm
Weight	0.70 ±0.07 kg
Information exchange channels	ARINC 429 (2 inputs / 1 output) RS 232 (process channel) RK (4 inputs / 3 outputs)
WSF categories according to KT-160D	KT/160D VVF. [V4/A4]HVAV[GU/(BA) (B1A)]XXXDFSZAAZZ[RR]M[A2C22]XXA
Operating temperature range	-40 °C to +55 °C
Power consumed from the "27 V" power supply network	No more than 8 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
