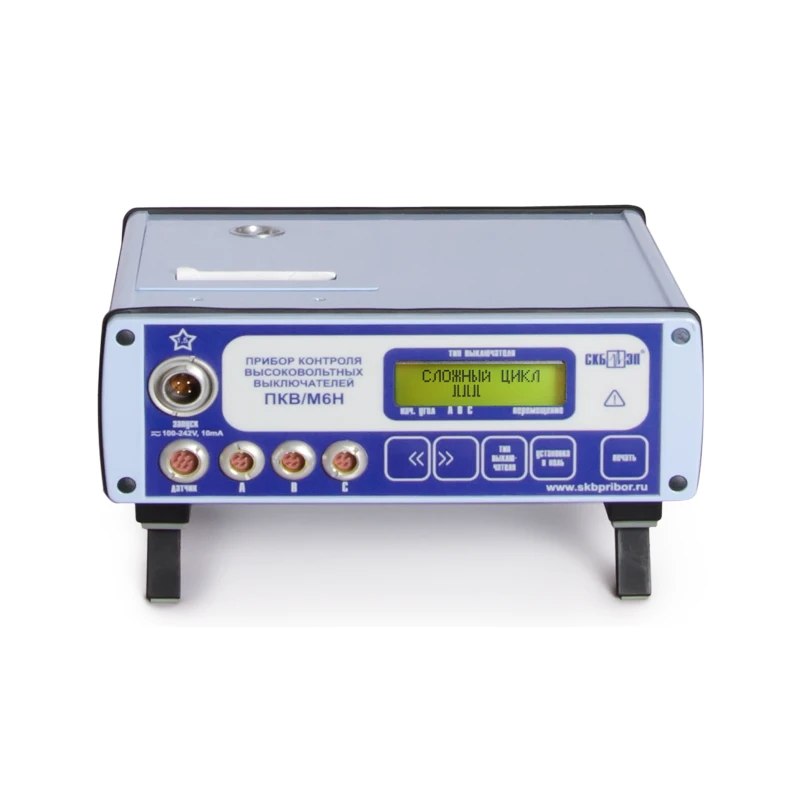

Control device of high-voltage circuit breakers PKV/M6H

The software and hardware complex is designed to determine by methods of non-destructive diagnostics of the technical condition of high voltage circuit breakers, as well as isolators and short-circuiters, removed from high voltage for the periodic inspection and repair. It is designed to measure the characteristics of .
It allows simultaneous measurement of time, stroke and speed parameters of moving parts, measurement of time to closing/opening of controlled contacts.
The device is available in two packages - standard (control of all parameters) and lightweight (control of time parameters).
After measurements the device recognises and calculates parameter values for simple operations and complex cycles, and for their setting it is necessary to use external switching equipment, such as PUV-10.
It allows to get a ready protocol at the end of measurement, which is printed by the inbuilt thermal printer. Printing of measurement results can be repeated the required number of times.
