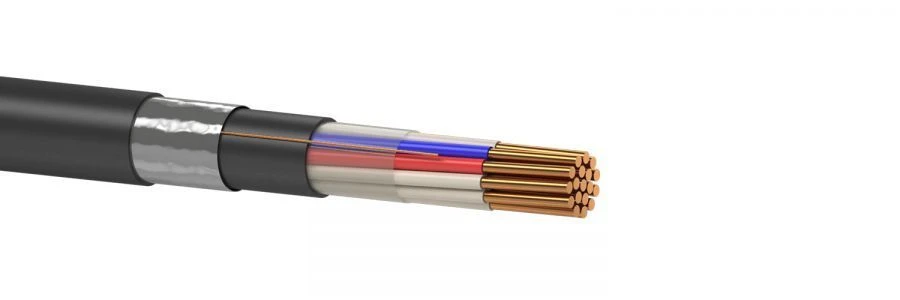

Control cables with copper conductors, KVVVGEng(A) grade

Control Cables Flameproof

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Control cables with copper conductors KVKBShvng(A)

Description

Control cables with copper conductors with nominal cross-section from 0, 75 to 6, 0 mm², with the number of cores up to 61, with insulation and sheathing made of PVC plasticates in a common screen, designed for connection to stationary electrical devices, apparatus, assemblies of electrical switchgears with nominal alternating voltage up to 660 V of frequency up to 100 Hz or direct voltage up to 1000 V, when used in non-explosive and explosive zones, as well as in underground workings, can also be laid in rooms, channels, tunnels, earth (trenches), including places confirmed to be exposed to the effects of explosion. including places confirmed to be exposed to stray currents.

Specifications

Insulation material PVC plasticate

Cable outer diameter 2 mm

Ambient temperature during cable operation -50 to + 70 °C

Mark KVVGEng(A)

Sheath material PVC plasticate with reduced flammability

Nominal voltage 660 V

Core material Copper

Twisting insulated cable cores are twisted into a core

Number of cores 2...61 pc

Climatized version ?

Core cross section 75.1 mm2

Calculated weight 118...4804 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
