Control Cables KUPEVng(A)-LS

Control System Cables

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Control Cables KUPEVng(A)-LS-XL

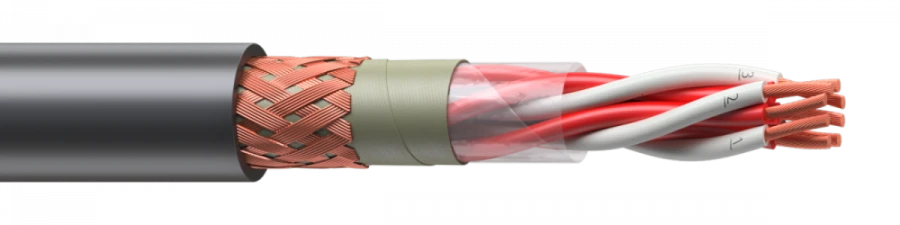

Description

Control cables designed for transmission of electric control signals of low power in control, monitoring and signalling circuits of fixed installation, operating at rated voltage up to 250 V inclusive of AC frequency up to 1000 Hz or up to 350 V inclusive of DC. Cable service life is not less than 30 years at operation in the temperature range from minus 50 to +60°?. Cables with index "XL" from minus 60 to +60°C

Specifications

Insulation material wrapping with fire-resistant tape

Core material copper multi-wire (class 4 according to GOST 22483)

Twisting insulated conductors or pairs of conductors of cables are twisted into a core

Winding polyethylene terephthalate tape

Separation layer sheathing material

Screen copper wire braiding

Cladding PVC plasticate with reduced flammability

Section 0.35 to 2.50 mm²

Number of cores 3 to 61

Number of pairs 2 to 52

Fire hazard class according to GOST 31565-2012: P1b.8.2.2.2.2.

Climatic version B and XL, placement categories 2-5 according to GOST 15150-69

Application Designed for single or group laying, taking into account the volume of combustible load cables, in internal electrical installations, as well as in buildings, rooms, structures and closed cable structures, including residential and public buildings.

Nominal voltage 250 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
