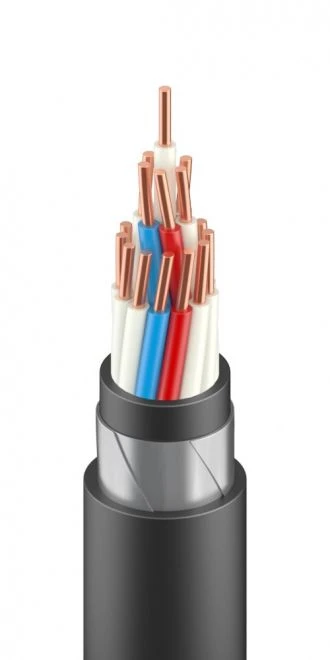

Control Cable with Plastic Insulation, Type BbShv, Model KVBbShvng(A)

Available for Import

Control Cable with Plastic Insulation for Reliable Signal Transmission

Control Cables Flameproof

Manufacturer: REЖКАБЕЛЬ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Control cable with plastic insulation in polyvinylchloride sheath in cold-resistant version, grade: KVBSHV-XL Cable with sheathed insulation in a protective hose made of polyvinylchloride plasticate of reduced flammability in cold-resista

Description

Cable control with copper conductive cores with cross-section from 0,75 to 10,0 mm2 with the number of cores from 3 to 61 with insulation made of polyvinylchloride plastic, protective cover type BbShv, in a protective hose made of polyvinylchloride plastic of reduced flammability. Designed for fixed connection to stationary electrical devices, apparatuses, clamp assemblies of electrical switchgear with rated AC voltage up to 660 V frequency up to 100 Hz or DC voltage up to 1000 V.

Specifications

Operating temperature range

-40...50 °C

Rated AC voltage

660 V

AC voltage test with nominal frequency of 50 Hz for 5 minutes between cores

2500 V

Electrical resistance of insulation of conductive cores, recalculated for 1000 m of length and temperature 20 C for cables with

Electrical insulation resistance of conductive cores, recalculated for 1000 m of length and temperature 20 C for cables with cro

Electrical resistance of insulation of conductive cores, recalculated for 1000 m of length and temperature 20 C for cables with

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
