Available for Import

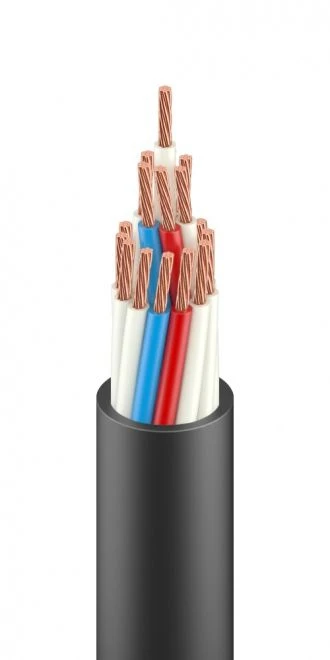

Control cable (flexible) with polyvinylchloride insulation and sheath, grade: KGVVVV

Specialty Electrical Cables

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Control cable (flexible) with PVC insulation and sheath, grade: KGVVVng(A)-LS Control cable (flexible) with polyvinylchloride insulation and sheath, grade: KGVVVng(A)

Description

Flexible cable with insulated copper conductive cores with cross section from 0,5 to 16,0 mm2, with the number of cores from 2 to 37 with insulation and sheathing made of polyvinylchloride plasticate. They are intended for fixed installation of power circuits, control circuits and local lighting on machines and mechanisms at alternating voltage up to 660V/50Hz or 1000V DC.

Specifications

Operating temperature range

-40...60 °C

Rated AC voltage

660...1000 V

AC voltage test with nominal frequency of 50 Hz for 1 minute between conductors for cables with AC voltage

3000 V

AC voltage test with nominal frequency of 50 Hz for 1 minute between conductors for cables with AC voltage

3500 V

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
