Available for Import
Control ball valve 693 flanged, 68320020
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Connection type:
flanged

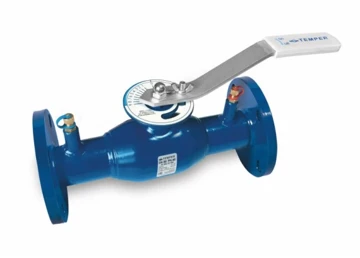

TEMPER regulating ball valves are designed for regulating (balancing) the flow of medium in heating, cooling and ventilation systems. The ball has a special cross-section and the valve is equipped with a scale with values. Regulation is performed by turning the handle with a pointer. The selected position of the handle is secured with a bolt and butterfly nut.
flanged
TEMPER regulating ball valves are designed for regulating (balancing) the flow of medium in heating, cooling and ventilation systems. The ball has a special cross-section and the valve is equipped with a scale with values. Regulation is performed by turning the handle with a pointer. The selected position of the handle is secured with a bolt and butterfly nut.
Specifications
Diameter
20 mm
Nominal pressure
40 MPa
Construction length
240 mm
Connection type
Flanged
Aisle
complete
Flange for mounting the actuator
without flange
Execution
regulating
