Available for Import

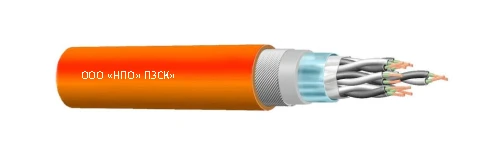

Control and monitoring cable KRUEL-IK-(E)V(E)(B,K,S)-(h)
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Available Models
Control and monitoring cable KRUEL-IC-(E)R(E)(B,K,S)-(h)-ng(A)-FRHF
Control and monitoring cable KRUEL-IK-(E)Pv(E)(B,K,S)-(h)-ng(A)-FRHF
Control and monitoring cable KRUEL-IK-(E)P(E)(B,K,S)-(h)-ng(A)-FRHF
Cable thermoelectrode universal KRUEL-TK-(E)R(E)(B,K,S)-(h)-ng(A)-HF
Control and monitoring cable KRUEL-IK-(E)Rp(E)(B,K,S)-(h)-ng(A)-FRLS
Cable of management and control with cores of copper or copper coated wires, with the number of cores, pairs, triples, fours from 1 to 91, nominal cross-section of cores from 0,2 to 16 mm2, with insulation of polyvinylchloride plasticate, shielded or unshielded, armoured or unarmoured, non-burning, intended for use in electrical installations for rated voltage up to 1000V inclusive (100, 250, 500, 660 and 1000V AC) with frequency up to 400Hz.
The cable is manufactured for general industrial application when supplied to the domestic market and for export, including the countries with tropical climate.
The cable is manufactured for general industrial application when supplied to the domestic market and for export, including the countries with tropical climate.
Technical Specifications
| Insulation material | Polyvinyl chloride plasticate (B) |
|---|---|
| Climatic version | UHL, UHL1, CHL, CHL1, AHL, M, OHM, TM, T |
| Rated AC voltage | 1000 V |
| Frequency | 400 |
| Fire hazard class | ?1.8.2.5.4 |
| Ambient temperature during cable operation | -60...80 °C |
| Nominal cross-section of conductive cores | 0.2...16 mm2 |
| Filler material | Belt insulation made of material according to cable version (h), water-absorbing elements (c), filling with silicon paste (pz) |
| Availability of reservations | No armor, armor made of galvanized steel bands (B), aluminum alloy bands (Ba), corrugated tape laminated with polymer (Bg), galvanized steel wires (K), galvanized steel wires over outer sheath (Kg), wires of |
| Outer sheath material | according to cable version |
| Cross cable shape | Round |
| Design of conductor core(s) | Multi-wire round, single wire round (ok); |
| Operational design | M, UV, Tc (Tc125, Tc200), X, Y, PUR |
| Presence of individual and/or shared metal shielding | No screen, a screen of aluminized composite material with a contact conductor (E), of copper wires (Em), of tinned copper wires (El), combined, of aluminized composite material and tinned copper wires (Ek), and |
| Number of conductive cores | 1-91 |
| Core material | Copper, tin-plated copper(l), nickel-plated copper(n); |
| Number of pairs | 1...91 pc |
| Core diameter | 0.56...6.15 mm |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
