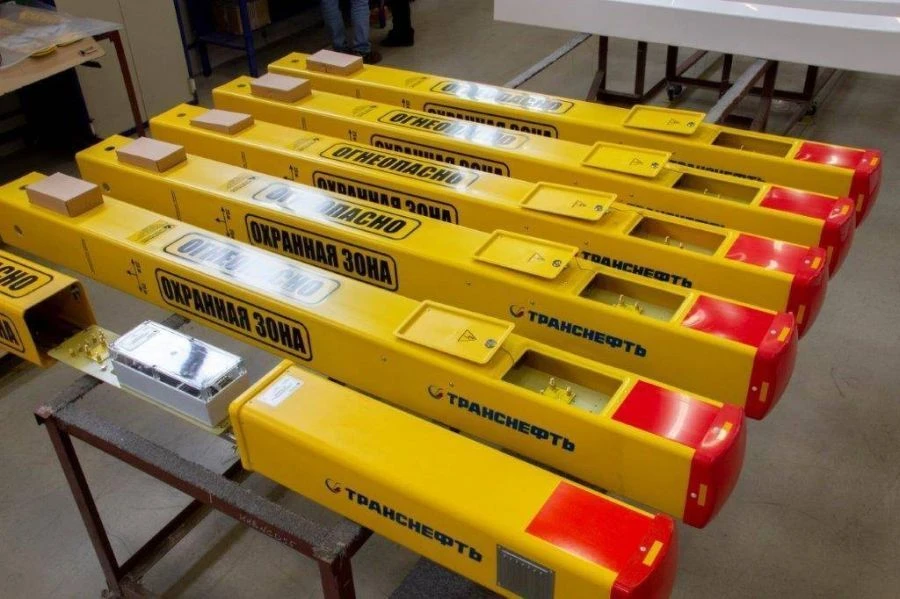

Control and measuring points TBPSh.421453.028TU

Instrumentation and control points (I&C) are intended for control of electrochemical protection parameters, switching of separate elements of electrochemical protection, designation of underground pipeline routes. The instrumentation can also be used for marking the route and picketage of underground pipelines, for which purpose a kilometre marker for air control with a marked kilometre marker is installed on top of the instrumentation. Dimensions: height 2500 mm, edge width 200 mm, wall thickness 4 mm, square section. The size of the plane of the information field of the kilometre mark is 400x500 mm with an angle of inclination to the horizontal of 30°.
