Continuous Magnetic Course Measuring Compass KM145-M2

Available for Import

Continuous Magnetic Course Compass KM145-M2 for Accurate Navigation

Directional Compasses

Manufacturer: KIPZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

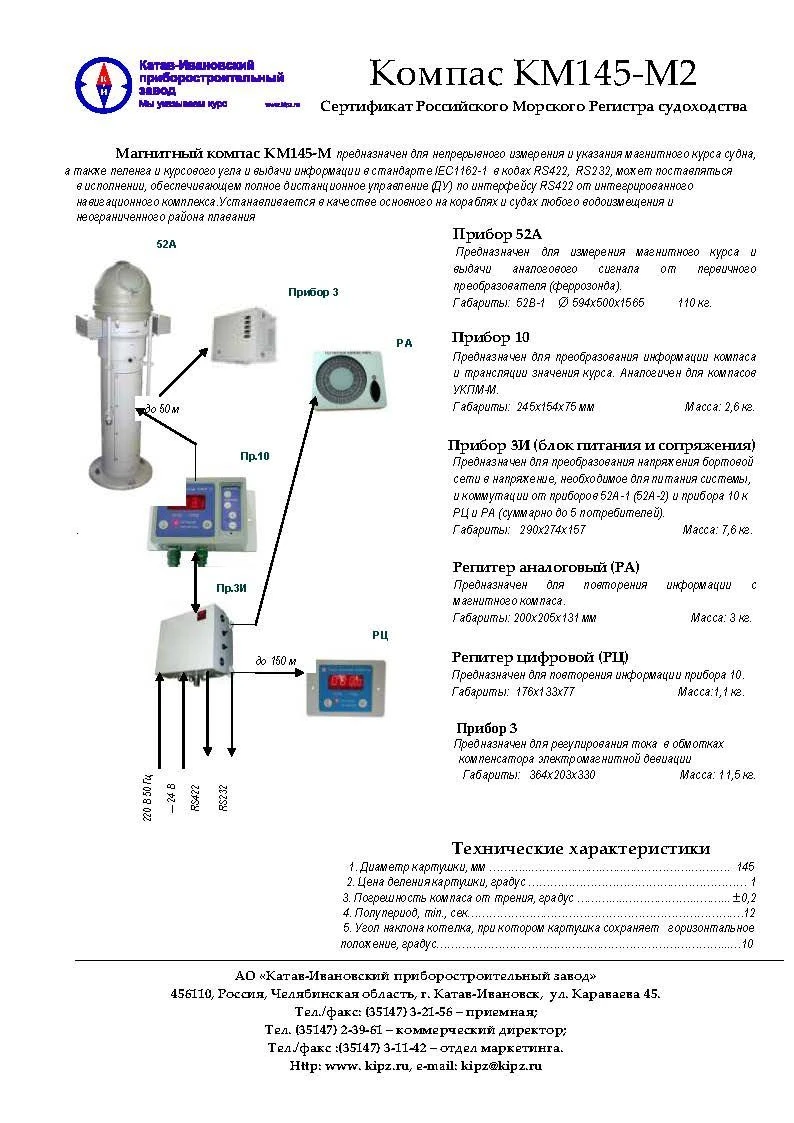

compass KM145-M2 MMMM.462512.010-01 is designed for continuous measurement and indication of magnetic heading of the vessel, as well as bearing and heading angle and output of information in IEC1162-1 standard in RS422, RS232 codes, can be supplied in the version providing full remote control (RC) via RS422 interface from the integrated navigation complex. It has a function of automatic declination input. It is installed as the main one on ships and vessels of any displacement and unlimited navigation area

Specifications

Ambient temperature

general: -40 to +70 , maximum permissible: to -60

Shock loads

up to 150

Vibration loads

Up to 200 Hz with acceleration up to 20 m/s2

Error of heading on a stationary base

0.5 °C

Cartridge diameter

145 mm

Set

Device 10; Device 52A; Device 3I (power supply and interface unit); Analogue Repeater (RA); Digital Repeater (DR); Device 3

Type

magnetic compass

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
