Constructor Series Workbenches (CTR) for Assembly and Repair

Available for Import

Constructor Series Workbenches (CTR) for Assembly, Repair, and Workshop Tasks

Metal Household Furniture

Manufacturer: PROMMEIZDELIY LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

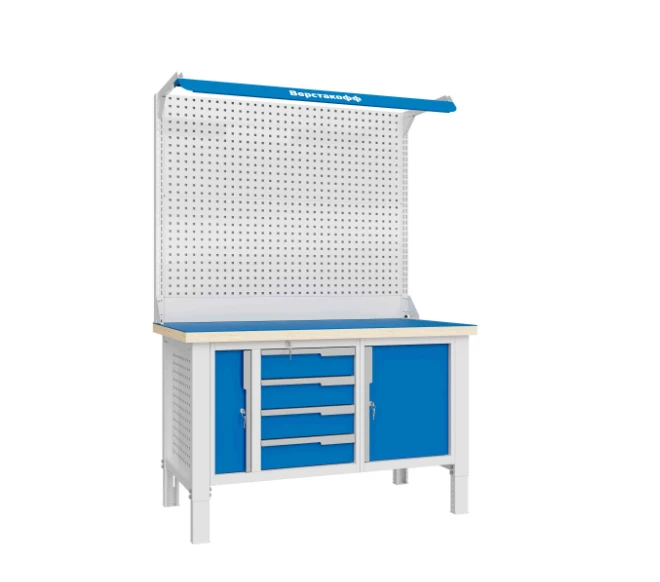

Benches of CTR series are designed for assembly, repair, locksmith and other types of work in production, educational institutions, workshops and garages. Workbenches are designed for installation in closed rooms. The workbench is a frame collapsible construction consisting of supports and rear beams.

The workbench top is attached to the supports and rear beams. The workbench modules are fixed on the worktop and supported by ribs mounted on the supports. The main feature of the workbench is its modular design.

By choosing different combinations of modules you can easily vary the length of the workbench. It is possible to install modules of two widths. Modules with different number of drawers, door and shelves are available.

A hanging module is available. A wall shelf is available. A module with a pull-out pencil case can be fitted.

A mobile module can be fitted. Modules are equipped with a locking system (two keys included).

Specifications

Type of product according to PP RF 616

Metal household furniture, other, not included in other groupings

Depth

745 mm

Length

3000 mm

Frame type

metal

Maximum load

1500 kg

Number of open shelves

3 pcs

Number of drawers

4 pcs

Workbench width

1200...3000 mm

Workbench height

700...2100 mm

Guides

Full extension ball bearing

Steel

0.8...1.5 mm

Assignment

Designed for assembly, repair, locksmith and other types of work in production, educational institutions, workshops and garages, designed for installation in closed rooms

Type of floor support

Unregulated

Built-in backlighting

Got it

Maximum permissible weight of the load on the surface of the crate

41 kg

Maximum permissible weight of the load on the shelf surface

61 kg

Maximum permissible weight of the load on the screen (if any)

71 kg

Maximum permissible load weight on the hinged shelf of the screen

11 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
