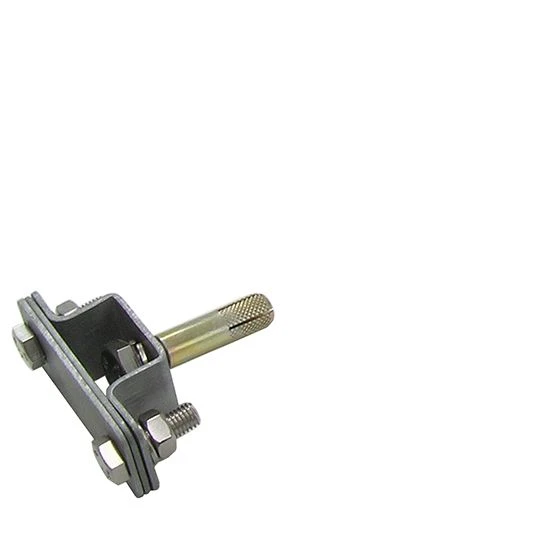

Conductor Holder DP-45GTS-01 for Securing Flat Conductors in Lightning Protection

Designed for fastening and connecting (parallel) flat (20-45) x (3-5) mm clamped conductors (lightning protection current collectors and grounding conductors) made of hot-dip galvanised steel to walls, plinths and ceilings made of the following materials: concrete, full-body brick, natural stone. Fastening is performed with the help of a driven anchor M10x40 through the insulation made of non-combustible materials. Used as part of lightning protection, earthing and equipotential bonding systems. Made of steel coated with hot zinc according to GOST 9.307-89, fasteners made of stainless steel, anchor made of galvanised ( on request - of stainless steel).
