Available for Import

Concrete ring clamp ZBKV-1,6-40-130

Material Handling Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Gripper for concrete rings ZBKV-0,8-40-130 Clamp for concrete rings ZBKV-1,0-40-130

Description

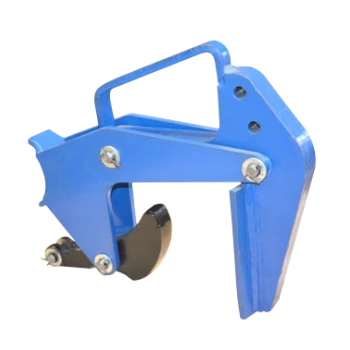

Gripper ZBKV is designed for lifting, moving, installing concrete rings of different diameter and thickness in vertical position.

The clamp for concrete rings is characterised by a rigid frame construction, equipped with a movable eccentric and a repositionable clamping foot. The clamping jaw allows the clamping of rings with a wall thickness of up to 130 mm.

It is recommended to use at least three grippers for lifting the load with suspension on a sling of 3CC type.

Specifications

Payload

1.6 t

Designation

????-1,6-40-130

Operating range

40-130 mm

Product weight

16.8 kg

Manufacturer's item

20100045227

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
