Computing unit 3DV-EdgeAI-32

All-in-One Computing Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

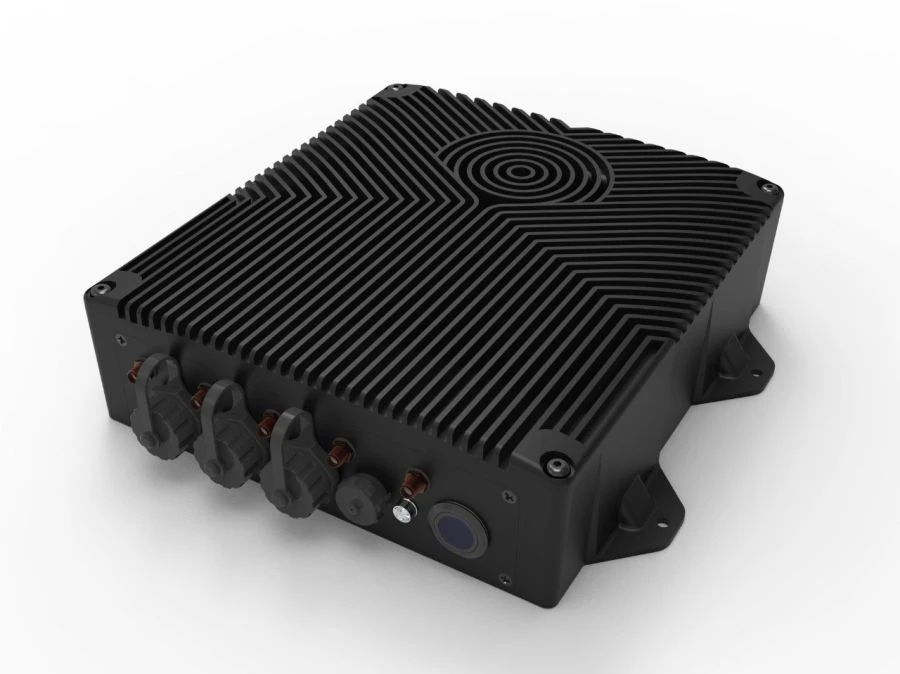

The computing unit is designed for building vision systems on vehicles and UAVs, as well as on any stationary territorially distributed objects. The block contains a neural processor with performance up to 32 TOPS, as well as a video processor with support for parallel processing of up to 32 channels of HD video. The unit is made in a compact aluminium housing with passive cooling and IP65 protection, and contains all the necessary interfaces for building embedded systems.

Technical Specifications

Основной процессор	8 cores ARM Cortex-A53, frequency up to 2.3 GHz
Neuroprocessor	32TOPS (INT8), 16TFLOPS (FP16/BF16), 2TFLOPS (FP32)
Видеопроцессор	12 channels H.265/H.264 1080p@25fps video encoding 32 channels H.265/H.264 1080p@25fps video decoding
RAM	16GB LPDDR4x
Accumulators	64GB eMMC (operating system), up to 512GB SD (optional), M.2 NVMe 2280 (optional)
Basic interfaces	1GB Ethernet, USB 3.0, RS232, RS484, CAN
Wireless interfaces (optional)	Wi-Fi IEEE 802.11 ia/b/g/g/n/ac, Bluetooth 5.x module (M.2 key A+E), 3G/LTE/4G module (M.2 key B)
Navigation	GLONASS/GPS module
Power supply voltage	9...27 V
Dimensions	218×215×68 mm
Weight	2.3 kg
Temperature range	-20...+60 deg. C (possible version -40...+85 degrees C)
Protection class	IP65
Software	Операционная система Linux, инструменты разработчика 3DiVi, готовые детекторы (детекция лиц и объектов, верификация и идентификация лиц, трекинг лица, распознавание атрибутов лиц, алгоритм оценки качества изображений (QAA), скелетные модели поз человека, р

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
