Comprehensive Road Maintenance Machine KDM-320-10 for Efficient Road Care

Municipal Road Vehicles

Manufacturer: GKMP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

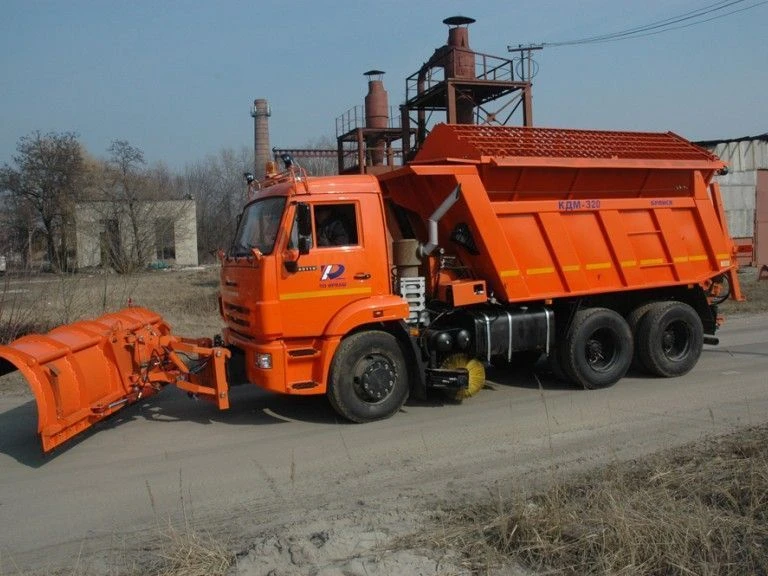

Designed to perform maintenance work on paved motorways. The tipper platform is adapted for equipment installation without using lifting means, for which purpose the equipment installed in the tipper body is equipped with a system consisting of four supports - two folding and two retractable. The tipper platform of the machine is equipped with units for securing the equipment installed on it. It is used for cleaning the roadway and shoulders from freshly fallen snow and slurry and distribution of solid de-icing materials on the carriageway.

Specifications

Type of product according to PP RF 616

Vehicles for public utilities and road maintenance

Width of the strip to be cleaned

2.2 mm

Hopper capacity

7.4

Base chassis type

dump truck kamaz 65115 in modifications: 65115-a5; 65115-50; 65115-rr; 65115-rs

Engine type

Diesel

Rated motor power (her)

Flat grinder, Specialised grinder hp

Wheel arrangement

6?4

Climatic version

UHL 1

Availability of heater

availability

Availability of air conditioning system

depending on the chassis purchased

Machine type

complete road machine

Type of equipment of the combined road machine

complete with sand spreading equipment; front rotary mouldboard and middle brush

Brush medium / maximum output per hour

30250 m

Brush speed under load, not more:

300

Medium brush / width of the processed strip, not less:

2.2 m

Middle brush / brush drive

Hydraulic

Front rotary blade / weight, not more:

700 kg

Front swivel blade / largest blade rotation angle

+/- 35°

Front rotary blade / blade lifting and turning drive

Hydraulic

Sand spreader / spreading density per meter

5...500 year

Sand spreader / spreading width

2...9 m

Sand spreader / conveyor and spreader drive

Hydraulic

Overall dimensions / width / width at maximum blade angle

3350/3260 mm

Overall dimensions / height

3550 mm

Overall dimensions / length / length at maximum blade angle

10300/11010 mm

Gross weight

22060 kg

Permitted maximum transport speed

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
