Available for Import

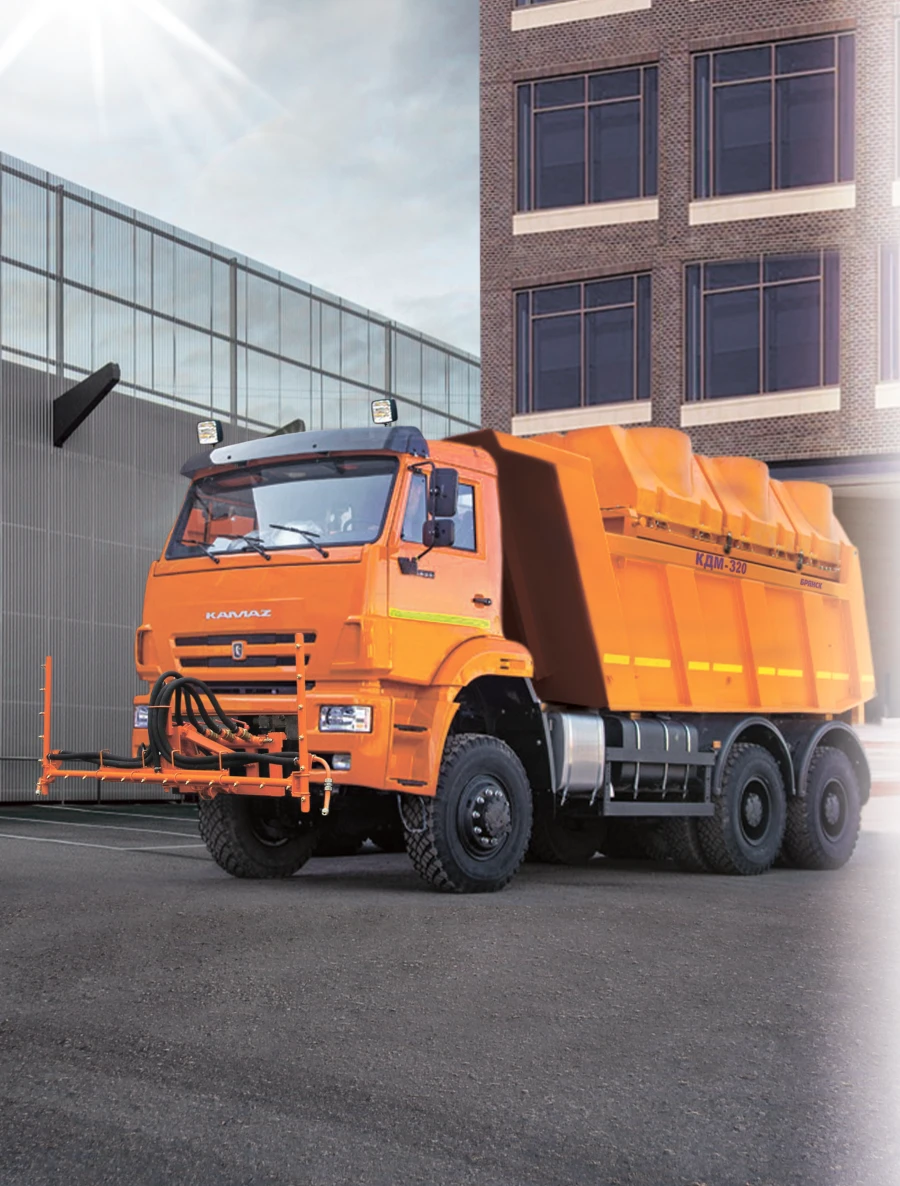

Complex road machine KDM-320-12

Municipal Road Vehicles

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed to perform maintenance work on paved roads. The tipper platform is adapted for equipment installation without the use of lifting means, for which purpose the equipment installed in the tipper body is equipped with a system consisting of four supports - two folding and two retractable. The tipper platform of the machine is equipped with units for securing the equipment installed on it. Designed for water washing of road surfaces, watering of green areas, fire extinguishing and air irrigation. The comb with nozzles is mounted on the front bracket of the machine.

Specifications

Type of product according to PP RF 616 Vehicles for public utilities and road maintenance

Type of equipment of the combined road machine complete with sprinkler and centre brush

Machine type complete road machine

Availability of air conditioning system depending on the chassis purchased

Availability of heater availability

Climatic version UHL 1

Wheel arrangement 6?4

Tank volume 8.4

Rated motor power (her) Flat grinder, Specialised grinder hp

Engine type Diesel

Width of the strip to be cleaned 2200 mm

Base chassis type dump truck kamaz 65115 in modifications: 65115-a5; 65115-50; 65115-rr; 65115-rs

Brush speed under load, not more: 300

Permitted maximum transport speed 60

Gross weight 21365 kg

Overall dimensions / length / length at maximum angle of rotation 8800/9500 mm

Overall dimensions / height 3550 mm

Overall dimensions / width / width at maximum swivelling angle of the comb 2760/2550 mm

Waterwashing equipment drive Hydraulic

Maximum washing pressure 2.5 MPa

Удельный расход воды при максимальной давлении и максимальной рабочей скорости / на метр 300

Medium brush / drive Hydraulic

Rotational speed of brush under load, not more than 300

Medium brush / maximum capacity 30250

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
