Complex K8

Geophysical & Navigation Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

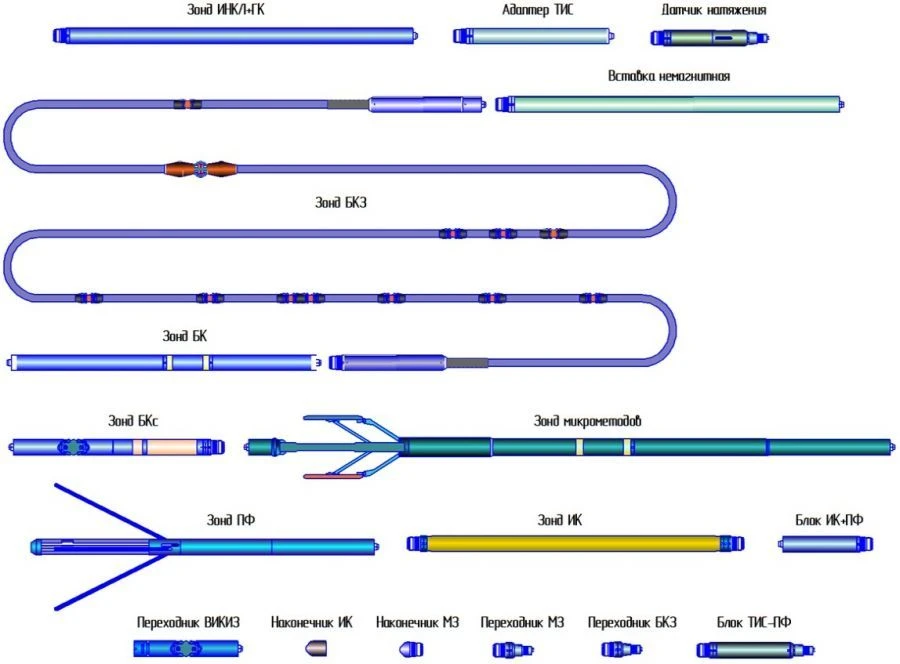

The instrument is designed to measure:

- apparent resistivity (AR) of the rocks intersected by the borehole, gradient lateral logging probes (LLP) A8,0M1,0N, A4,0M0,5N, A2,0M0,5N, N0,5M2,0A, A1,0M0,1N, A0,4M0,1N, potential-probe (KC) N11.0M0.5A, two three-electrode lateral logging probes (BC and BCs), two-electrode lateral micro logging probe (BMK), gradient-micro probe A0.025M0.025N (MZg) and potential-micro probe A0.05M (MZp);
- apparent specific electrical conductivity (ESEC) of the rocks intersected by the borehole with the 3I1.0 induction logging (IL) probe;
- UES of the fluid filling the borehole with a resistivityvimeter (REZ);
- spontaneous polarisation potential (SP);
- four mutually perpendicular distances (radii) R1, R2, R3, R4 from the instrument axis to the borehole wall by profiler (PF);
- two mutually perpendicular diameters (profiles) D1 and D2 of the borehole passing through the instrument axis by the profiler: D1=R1+R3; D2 =R2+R4.

Specifications

Measuring the tension of the logging cable 0...2000 kg

Measurement of DER of natural gamma radiation by GC probe 1...250

Measurement of borehole tool casing position sight angle 0...360

Measurement of borehole azimuthal angle with inclinometer 0...360

Measurement of borehole zenith angle with inclinometer 0...180

Measurement of profiles and diameter of a circular cross section of a borehole with a profiler 100...700 mm

Measurement of borehole radii with profiler 50...350 mm

Measurement of SAR with SAR probe -0.5...0.5 V

Measurement of borehole fluid UES with resistivimeter 0.05...5 ohm

Measurement of apparent resistivity of rocks with IR probe 10...2500

D measurement with micro-cavernometer 110...300 mm

Measurement of apparent UES of rocks by probes A0.025M0.025N and A0.05M 0.1...40 ohm

Measurement of apparent UES of rocks by probes A0.025M0.025N and A0.05M 0.2...500 ohm

Measurement of apparent resistivity of rocks by BMK probe 0.2...10000 ohm

Measurement of apparent resistivity of rocks with BK and BKc probes 0.2...1000 ohm

Measurement of apparent resistivity of rocks by KC probe 0.2...5000 ohm

Measurement of apparent UES of rocks by BKZ probes 0.2...5000 ohm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
