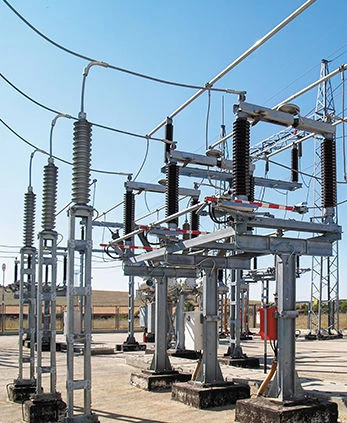

Complete transformer block substations with voltage from 35 to 110 kV

Oil-Filled Transformers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

KTPB is a project-component platform combining a set of functional modular components of full factory readiness with power, control and communication equipment, developed by specialists of JSC "Elektronmash", to create transformer substations with various combinations of network voltages 110/35/10/6 kV. KTPB meet the requirements of GOST 14695 and GOST 1516.3, these specifications and a set of design documentation for a particular product. And high reliability of the equipment used in KTPB is confirmed by test reports in independent test centres. Automated process control system (APCS) and telemechanics (TM) substations KTPB is based on the principle of distributed topology of data acquisition and transmission using standard international digital data transmission protocols IEC 61850, 60870-101/104 and others, as well as provided modifications for digital substations (DPS).

Technical Specifications

Possibility of regulation under voltage	Armoured glass
Rated power	63000
Transformer type	Reducing
Number of transformer phases	Three-phase
Number of windings	Three-winding
Type of insulation	Oil
Nominal voltage	110 kV
Thermal resistance current	40000 A
Thermal resistance current	6000...100000 A
LV version	ZRU, KTPN, KRUN
Rated current	100 A
Nominal voltage	0.4 kV
CH version	ORU, ZRU, KTPN, KRUN
Rated current of main circuits	630 A
Rated capacity of power transformers	630...25000
HV version	ORU, ZRU, KTPN, KRUN
Thermal resistance current	20000 A
Rated current of main circuits	630 A
Rated capacity of power transformers	630...63000
LV version	ZRU, KTPN, KRUN

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
