Complete switchgears of mine normal design of KU-10S series PH

High Voltage Circuit Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

GIS of series KU-10S ?? are intended for reception and distribution of electric energy of three-phase alternating current of industrial frequency 50(60) Hz and voltage 6(10) kV in systems with isolated neutral.
KU-10S ?? are used for completion of underground substations operating in conditions, explosion-proof by gas and dust.

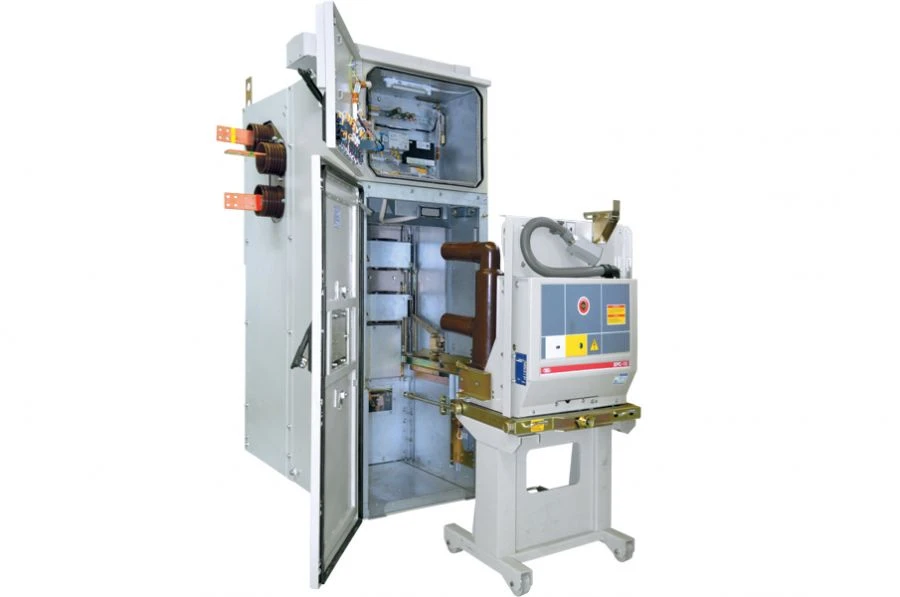

The switchgear cell is a metal structure made of high quality steel with aluzinc coating. Connections are made with
using bolted connections and steel rivets. The construction elements are powder sprayed on the façade side.
powder spraying. The enclosure frame is divided by metal partitions into relay compartment, withdrawable element compartment, busbar compartment, current transformer compartment and cable compartment.
current transformers and cables.
The enclosure design allows cable entry from the rear: from below or above, and from the side: from the left and right. A fast-acting fibre optic protection is used for protection against arc faults.

Technical Specifications

Width	900 mm
Height	2050 mm
Nominal voltage	10 kV
Highest operating voltage	B1/B8 2100/900 MHz kV
Rated current of main connections	1600 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
