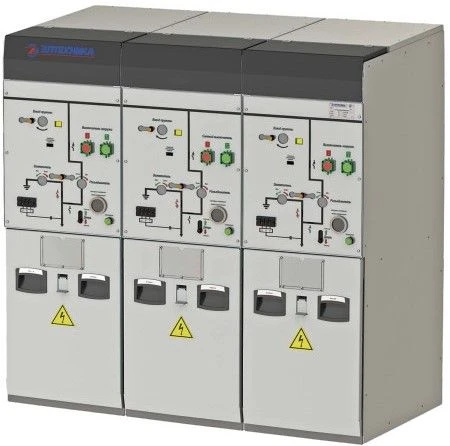

Complete Switchgear Device KRU-T for Secondary Power Distribution

Available for Import

Complete Switchgear Device KRU-T for Reliable Secondary Power Distribution

High Voltage Switchgear

Manufacturer: ELTEHNIKA OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Komplete switchgear with solid insulation series KRU-T is designed for use in secondary power distribution networks. Modular design of KRU-T provides both the possibility of manufacturing classic maintenance-free monoblocks, including for use in Smart Grid networks, and customisation of the product for the required number of connections and type of relay protection in accordance with customer requirements. Personnel safety is ensured not only by inbuilt interlocks that prevent incorrect operation, but also by the absence of gas-insulated gas as an arc-quenching medium in the combined switchgear module KRU-T.

Specifications

Width

400 mm

Height

1660...1860 mm

Depth

860 mm

Nominal voltage

10 kV

Highest operating voltage

B1/B8 2100/900 MHz kV

Nominal current

630 A

Rated tripping current

20000 A

Rated switch-on current

51000 A

Through short-circuit current, kA. Electrodynamic resistance current

51000 A

Through short-circuit current, kA. Thermal resistance current

20000 A

Duration of thermal resistance current flow. Main circuits

Duration of thermal endurance current flow. Earthing circuits

Mechanical life, number of "switch-on-pause-disconnect" cycles without current in the circuit

Up to 10000 pcs

Switching life of circuit-breaker at rated tripping current

Up to 25 pcs

Degree of protection according to GOST 14254-96

IP 31-67

Weight of cell per connection

no more than 350 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
