Complete switchgear 6(10)kV series K-304 NE
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

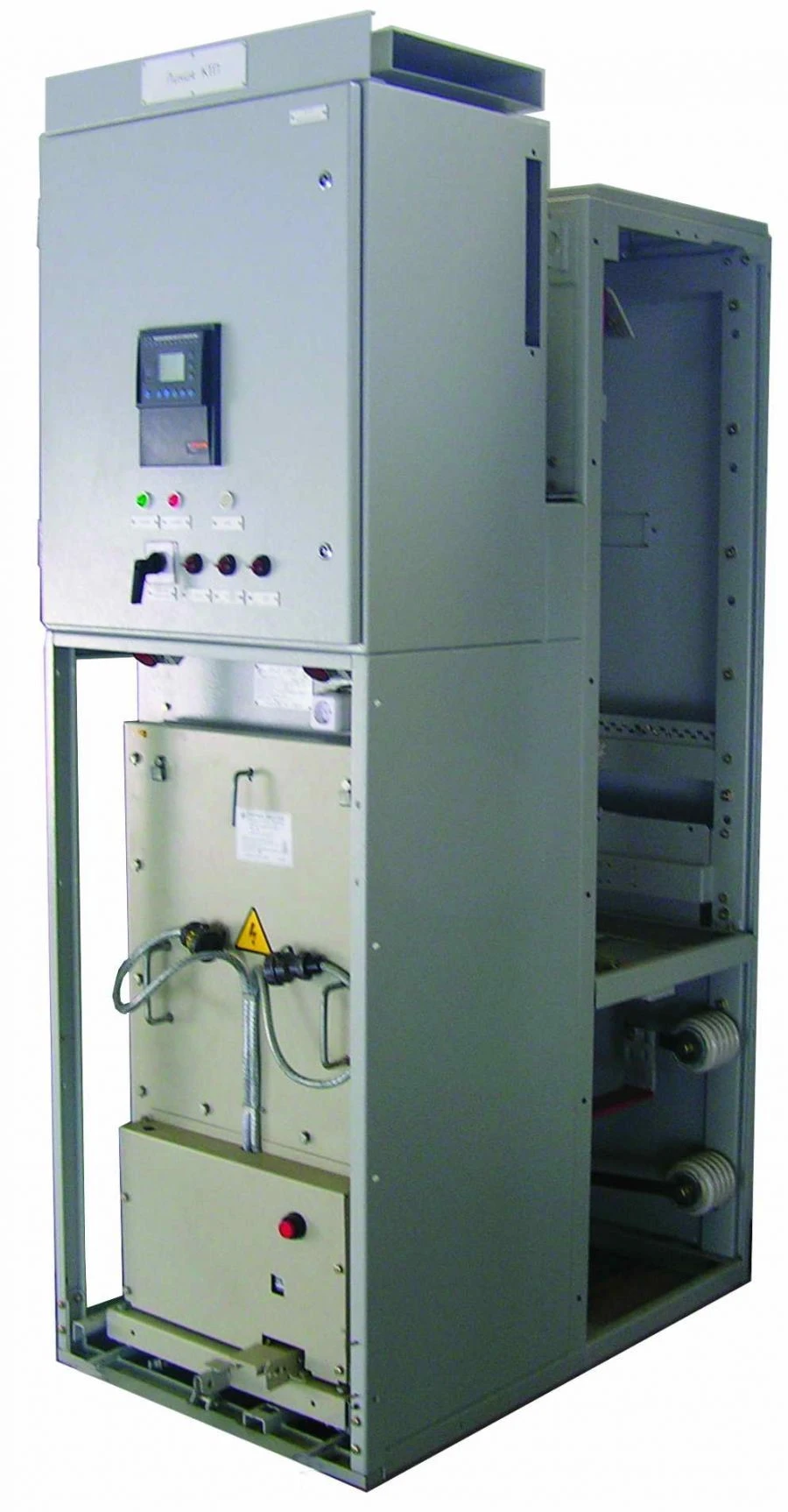

GIS cabinets series K-304 NE general industrial application are designed to receive and distribute electrical power three-phase alternating current frequency of 50 Hz, voltage 6, 10 kV with an insulated neutral.
GIS are an ideal solution for expansion of existing facilities or reconstruction of obsolete equipment and are compatible with GIS of other manufacturers.
GIS are manufactured and supplied on individual orders in accordance with the technical specifications of design organisations for all types of power stations, electrical substations and power supply systems.
GIS are an ideal solution for expansion of existing facilities or reconstruction of obsolete equipment and are compatible with GIS of other manufacturers.
GIS are manufactured and supplied on individual orders in accordance with the technical specifications of design organisations for all types of power stations, electrical substations and power supply systems.
Specifications
Length
1150 mm
Height
2200 mm
Width
750 mm
Rated current of main circuits of enclosures
630, 1000, 1250, 1600 A
Rated current of busbars
1000; 1250; 1600; 2000; 3150 A
Protection degree of shells according to GOST 14254
IP20
Rated tripping current of circuit breakers
up to 31500 A
Thermal resistance current
31500 A
Rated current of electrodynamic resistance of main circuits
81000 A
Terms of service
Bilateral
Overall dimensions, WxWxG
2200x750x1150 mm
Rated voltage (line voltage)
6;10 kV
Operating voltage
6(10) kV
Weight-no more
1000 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
