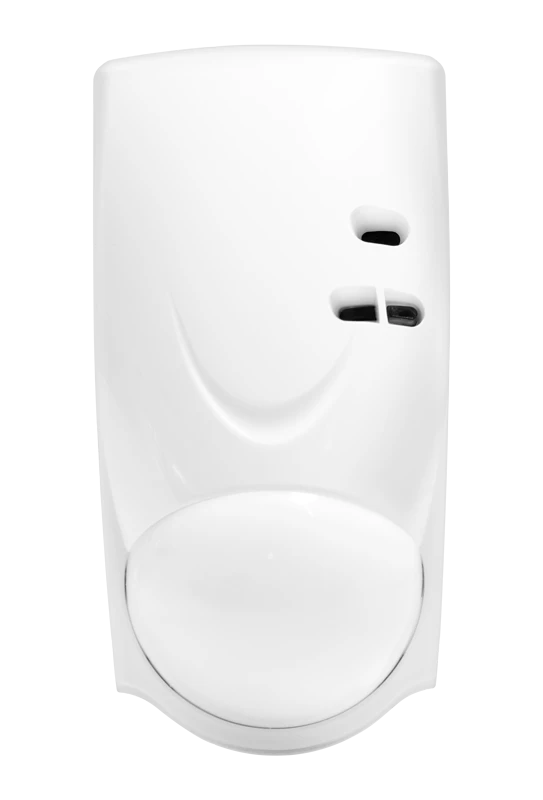

Combined volumetric optical-electronic and surface sound addressable intrusion detector "S2000-STIK" ATSDR.425158.001

Designed to detect intrusion (attempted intrusion) into the protected space of a closed room by analysis of infrared radiation, as well as detection of the destruction of ordinary glass thickness from 2.5 to 8.0 mm grades M4-M8 (GOST 111-90) and covered with protective polymer film, providing protection class A1-A3 according to RD 78.148-94 of the Ministry of Internal Affairs of Russia. Provides: the issuance of alarm notification via two-wire communication line to the controller two-wire communication line integrated security system "Orion", light indication of red and green to monitor the performance of IR and ST parts respectively, protection against masking IR and ST parts, address programming and two-way data exchange with the controller, discrete adjustment of sensitivity of the ST part, protection against unauthorised opening of the case.
