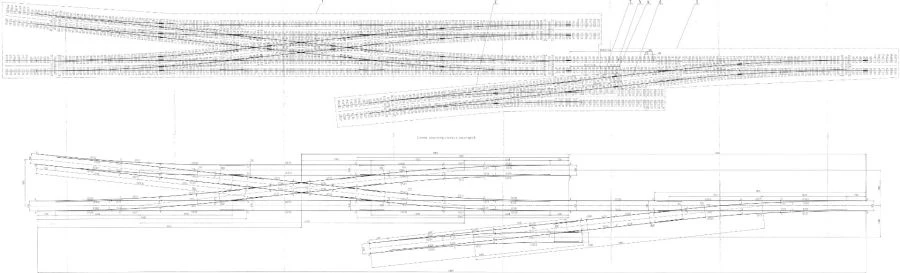

Combined Track Development for Station Type R65 for Efficient Railway Operations

The combination consists of 2 switches of type R65 mark 1/9 (project VSP017.00.000), crossing ramp (project MSZ.8433.00.000) and other details of track structure. The switch on LVT-M blocks with screw and dowel fastening is designed for laying on the underground railway tracks. The arrow has a reinforced design of the root unit.

The crossbar is prefabricated with improved mating of cast and rail parts. The counter rail is not connected with the track rail. The shackles are HFI hardened.

Frame rails and cross rails are made of rails of DT350 category.
