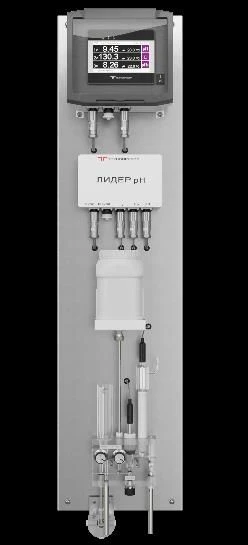

Combined pH and Redox Analyzers with LEADER-pH Block for Liquid Measurement
Manufacturer:
TECHNOINSTRUMENT LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Analysers are designed to measure the pH value of hydrogen ion activity, electromotive force (redox potential) and temperature of liquids
Specifications
Power supply voltage
187 to 242 VAC, 24 to 46 VAC (optional), 21.6 to 26.4 VDC (optional)
EMF (ORP) measuring range, mV
-2500...2500
Measuring range pH
0...14
Measurement mode
continuous
Hydraulic block design
Free draining flow cell, mainline, submersible, sluice cell
Recording and viewing the archive of abnormal situations
Armoured glass
Possibility of remote location of the hydraulic block from the indication unit
Yes, up to 1,000 meters
Indication of electrode system status
Armoured glass
Calibration methods
On chemical analysis, on buffer solutions
Output interfaces
Current outputs, RS-485, Ethernet, dry contact relays, HART
Automatic control of tolerances for electrode system parameters during calibration
Armoured glass
Presence of temperature compensation for pH25 calculation
Yes, dual (clean water and Nernst).
Number of channels
1...3 pcs
The way information is presented
Display
Principle of action, method
??????????????
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
