Available for Import

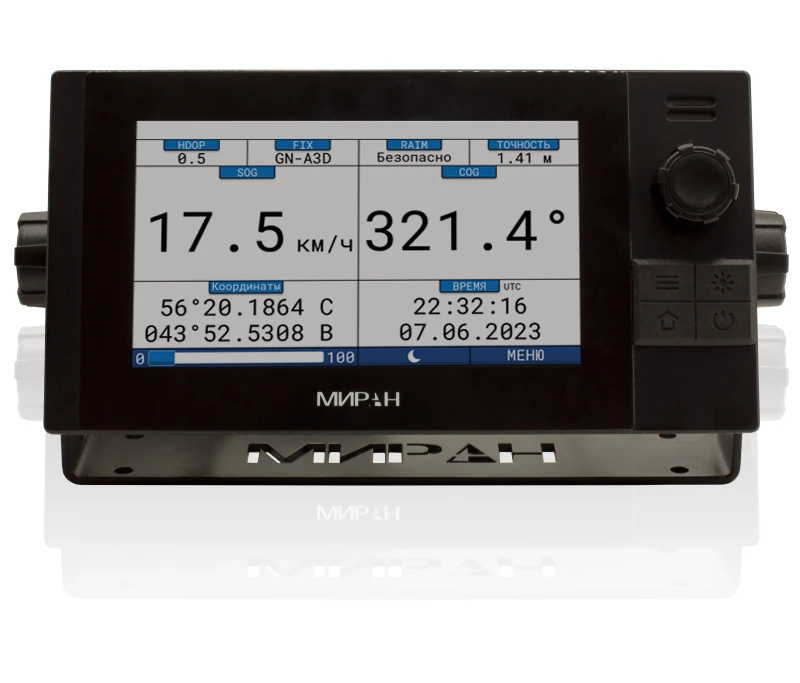

Combined GNSS transceiver "Miran GNSS-SP-2" (MNN.464318.001)
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
MIRAN GNSS transceivers are intended for use for navigation purposes on sea and river vessels for round-the-clock determination of navigational parameters of vessel movement by radio signals of GLONASS, GPS, BeiDou and Galileo satellite navigation systems open for consumers.
Specifications
Number of independent (parallel) reception channels
92
Frequency range of receiving channels
E1
Type of signals used
GLONASS
Number of independent (parallel) reception channels
92
Built-in memory
0.128
Operating temperatures
-15...55 °C
Accuracy
2.5 m
Weight
1.28 kg
Height
145 mm
Width
79.5 mm
Length
272 mm
Number of satellites to be tracked (received signal processing channels)
92 pc
Power consumption
8 W
SBAS
WAAS, GAGAN, MSAS, EGNOS, SDCM, BDS
QZSS
L1
GALILEO
E1
GLONASS
L1
BDS
B1I
GPS
L1CA
Power supply voltage
12...24 V
GPS reception frequency
1575.42
GLONASS reception frequency
1602.5625...1615.5
BeiDou reception frequency
1561.098
Galileo reception frequency
1575.42
Receiving differential corrections
DGPS; DGLONASS; DBDS; dGalileo
Time of first adjustment on average
2 sec (Hot Start), 2 sec (Warm Start), 32.5 sec (Cold Start)
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
